Part No.
|
Temp Range
|
Reference Link
|
---|---|---|---|
TP-140
|
Set at 60°C
|
||

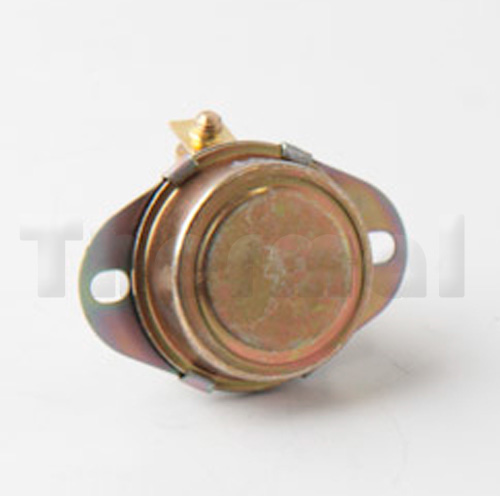

TP-170
|
Set at 77°C
|
||
TP-205
|
Set at 95°C
|
||

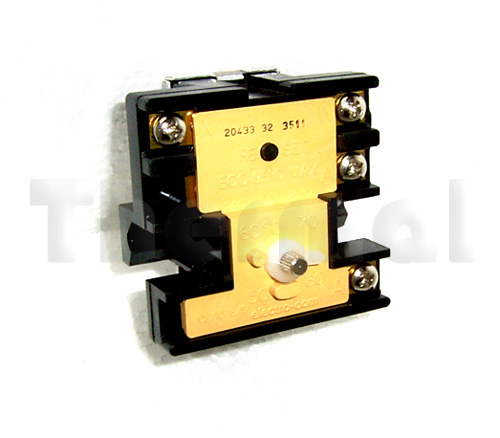

T20433-3-1
|
60-82°C Man Reset 90°C
|
||

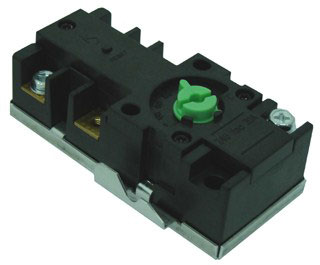

EWT1L2-70
|
SPST Thermostat Green Dial 50 – 70°C Adjustable with Over Temperature reset |
||

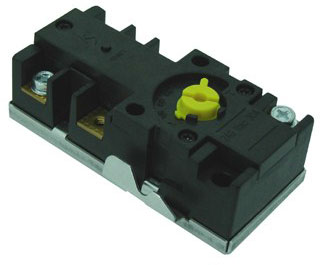

EWT1L2-80
|
SPST Thermostat Yellow Dial 60 – 80°C Adjustable with Over Temperature reset |
||

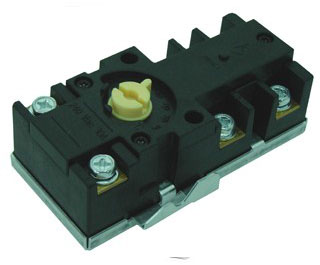

EWT2L2-80
|
Dual Element SPDT Thermostat Beige Dial 60 – 80°C Adjustable with Over Temperature reset |
||

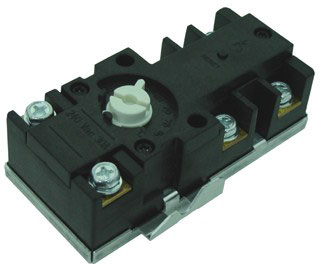

EWT2L2-60
|
Solar Water Heaters SPDT Thermostat Grey Dial 60°C Set Temperature with Over Temperature reset |
||

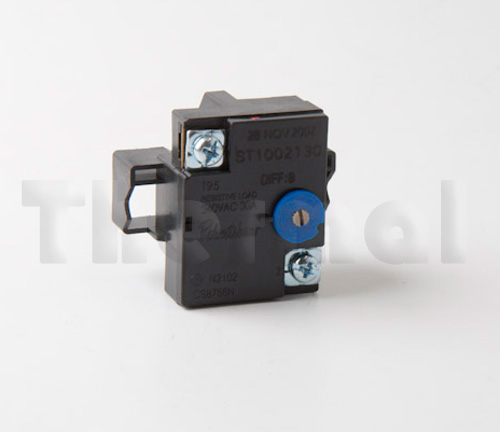

TST1002
|
50-80°C
|
||
TST1006
|
63-93°C
|
||

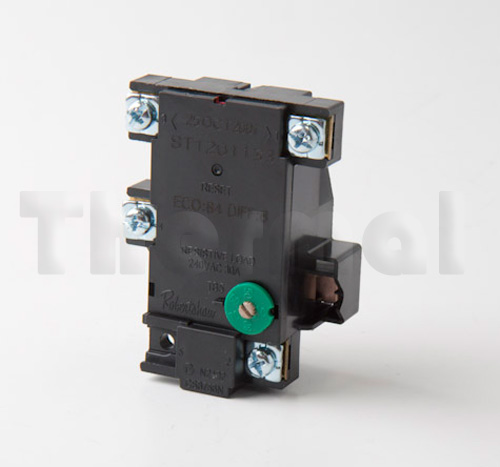

TST1201
|
50-70°C Man Reset 82°C
|
||

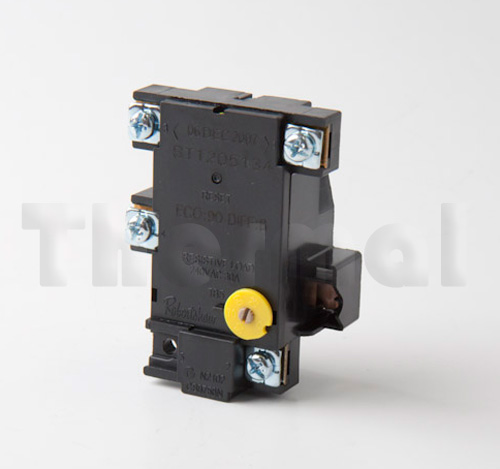

TST1205
|
50-80°C Man Reset 92°C
|
||

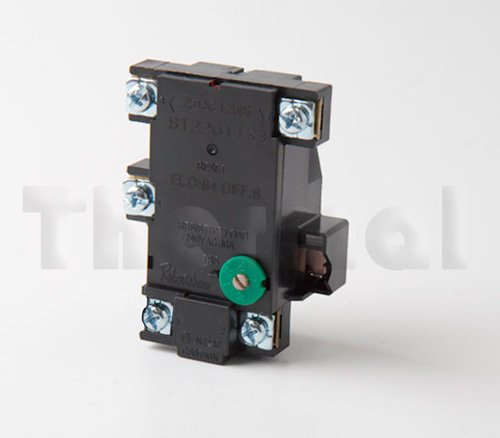

TST2201
|
50-80°C Man Reset 92°C
|
||

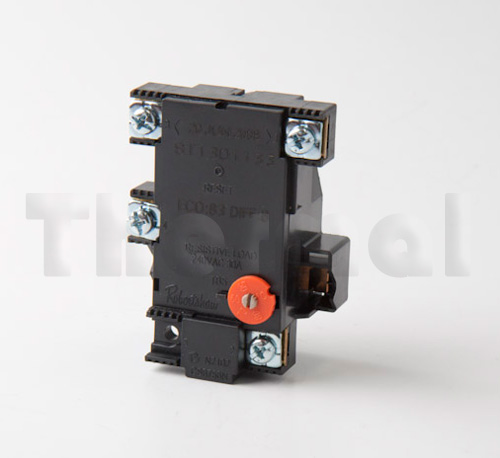

TST1301
|
Solar hot water
|
Hot Water
We stock a large number of Water Heating products covering domestic hot water systems, commercial catering ie urns, bain maries etc, through to high power industrial units. From Bolt on to Screw-in B.S.P elements through to Bobbin elements, Thermostats and Sacrificial Anodes, we cover all you water heating requirements.
Wire Elements
Part Number | Description |
---|---|
J1 | JUG Element 1600W |
J2 | JUG Element 1250W |
J3 | JUG Element 1600W |
J7 | JUG ASSEMBLY HARD WATER 1800W |
J8 | JUG ASSEMBLY HARD WATER 1600W |
J9 | JUG ELEMENT 1250W |
JA2 | JUG Element 1600W |
Stem Thermostats
Part No.
|
Description
|
Reference Link
|
---|---|---|
TP11
|
30-80° Auto reset 16A/240V – 11″ Stem, 6mm Dia
|
|
TP7
|
30-80° Auto Reset 16A/240V – 7″ Stem, 6mm Dia
|
|
EG0780
|
40-80°C Auto Reset 20A/240V – 7″ Stem, 8mm Dia
|
|
EG1170
|
40-70°C Auto Reset 20A/240V – 11″ Stem, 8mm Dia
|
|
EGD11110
|
80-110°C Auto Reset 20A/240V – 11″ Stem, 8mm Dia
|
|
VK4251
|
10-88°C Auto Reset 20A/240v – 7″ Stem 8mm Dia
|
|
VK4252
|
10-88°C Auto Reset 20A/240v – 7″ Stem 8mm Dia
|
|
VK4253
|
30-110°C Auto Reset 20A/240V – 7″ Stem 8mm Dia
|
|
VK4254
|
30-110°C Auto Reset 20A/240V – 7″ Stem 8mm Dia
|
|
VK4351
|
40-88°C Auto Reset 20A/240V – 11″ Stem 8mm Dia
|
|
VK4352
|
40-88°C Auto Reset 20A/240V – 11″ Stem 8mm Dia
|
|
VK4353
|
60-120°C Auto Reset 20A/240V – 11″ Stem 8mm Dia
|
|
VK4354
|
60-120°C Auto Reset 20A/240V – 11″ Stem 8mm Dia
|
|
VK4355
|
0-40°C Auto Reset 20A/240V – 11″ Stem 8mm Dia
|
|
VK4451
|
0-65°C Auto Reset 20A 240V – 18″ Stem 8mm Diameter
|
|
VKL2201
|
50-80°C Auto Reset 16A 240V – 7″ Stem 8mm Diameter
|
|
VKL2203
|
25-70°C Auto Reset 16A 240V – 7″ Stem 8mm Diameter
|
|
VKL2251
|
45-95°C Manual Reset 16A 240V- 7″ Stem 8mm Diameter
|
|
VKL2271
|
0-40°C Auto Reset 16A 240V – 7″ Stem 8mm Diameter
|
|
VKL2301
|
50-80°C Auto Reset 16A/240V – 11″ Stem 8mm Diameter
|
|
VKL2351
|
45-95° Manual Reset – 11″ Stem 8mm Diameter
|
|
VKL2401
|
50-80° 16A 240V – 18″ Stem 8mm Diameter
|
|
VKL2451
|
45-95° Manual Reset – 18″ Stem 8mm Diameter
|
|
VKL3201
|
50-80° 16A 240V – 7″ Stem 8mm Diameter
|
|
VKL3301
|
50-80° 16A 240V – 11″ Stem 8mm Diameter
|
|
VKL3401
|
50-80° 16A 240V – 18″ Stem 8mm Diameter
|

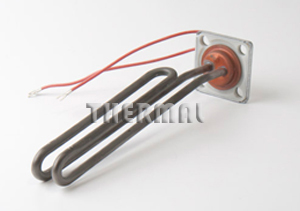

Bolt On Elements
All Bolt On elements are resistance earthed and supplied with 4 Bolts and a gasket. Leads are rated at 15A, 240V up to and including 3600W elements and at 20A, 240V for 4800W elements. Bolt On elements consist of a heating element spiral enclosed in a tubular metal sheath. compacted magnesium oxide is used to insulate the heating element. The Terminal ends of the sheath are sealed against moisture penetration. There are a 2 Different configurations Double Loop (DL) and Sickle.
Standard Bolt On Elements
|
|||||
---|---|---|---|---|---|
Part No.
|
Type
|
Wattage
|
Watts Density (kW/m2)
|
Penetration length (mm)
|
Reference Link
|
TA1800B
|
DL
|
1800
|
120
|
190
|
|
TA2400B |
DL
|
2400
|
120
|
240
|
|
TA3000B
|
DL
|
3000
|
120
|
260
|
|
TA3600B
|
DL
|
3600
|
120
|
340
|
|
TA4800B
|
DL
|
4800
|
164
|
425
|
|
TA6000B
|
DL
|
6000
|
***
|
460
|
|
TA2400
|
Sickle
|
2400
|
120
|
295
|
|
TA3000
|
Sickle
|
3000
|
120
|
260
|
|
TA3600
|
Sickle
|
3600
|
120
|
320
|
|
TA4800
|
Sickle
|
4800
|
120
|
325
|
Hard Water Bolt on Elements
|
||||
---|---|---|---|---|
Part No.
|
Type
|
Wattage
|
Penetration Length (mm)
|
Reference Link
|
SW24BS
|
DL
|
2400
|
330
|
|
SW30BS
|
DL
|
3000
|
400
|
|
SW36BS
|
DL
|
3600
|
460
|
|
SW48BS
|
DL
|
4800
|
610
|
|
SW60BS
|
DL
|
6000
|
700
|
Screw In Elements
The Screw-in Water Heating Elements that we stock vary in B.S.P sizes. 1″ B.S.P screw-ins are supplied with a gasket. Leads are rated at 15A 240V up to and including 3600W and at 20A 240V for 4800W elements. 1 1/4″ and 2″ Screw-ins are supplied with a gasket. Terminal covers and stud assemblies are available if required.
1″ B.S.P
|
|||||
---|---|---|---|---|---|
Part No.
|
Type
|
Wattage
|
Watts Density (kW/m2)
|
Penetration length (mm)
|
Reference Link
|
H03560
|
SL
|
600
|
120
|
145
|
|
H03561
|
SL
|
900
|
120
|
200
|
|
H03562
|
SL
|
1200
|
120
|
245
|
|
H03563
|
DL
|
1500
|
120
|
205
|
|
H03564
|
DL
|
1800
|
120
|
235
|
|
H03565
|
DL
|
2000
|
120
|
255
|
|
H03566
|
DL
|
2400
|
120
|
290
|
|
H03567
|
DL
|
3000
|
120
|
295
|
|
H03569
|
DL
|
3600
|
140
|
300
|
|
H03570
|
DL
|
4800
|
140
|
395
|
1 1/4″ B.S.P. |
|||||
---|---|---|---|---|---|
Part No.
|
Type
|
Wattage
|
Watts Density (kW/m2)
|
Penetration Length (mm)
|
Reference Link
|
H03571
|
DL
|
1800
|
120
|
205
|
|
H03572
|
DL
|
2000
|
120
|
220
|
|
H03573
|
DL
|
2400
|
120
|
260
|
|
H03574
|
DL
|
3000
|
120
|
305
|
|
H03575
|
DL
|
3600
|
120
|
355
|
|
H03576
|
DL
|
4800
|
120
|
450
|
2″ B.S.P
|
|||||
---|---|---|---|---|---|
Part No.
|
Type
|
Wattage
|
Watts Density (kW/m2)
|
Pentration Length (mm)
|
Reference Link
|
H03580
|
DL
|
1800
|
120
|
190
|
|
H03581
|
DL
|
2000
|
120
|
210
|
|
H03582
|
DL
|
2400
|
120
|
255
|
|
H03583
|
DL
|
3000
|
120
|
305
|
|
H03584
|
DL
|
3600
|
120
|
345
|
|
H03585
|
DL
|
4800
|
120
|
460
|
Bobbin Elements
Bobbin elements consist of heating element spirals wound onto ceramic bobbins. This Type of element is not directly immersed in water but inserted into a removable, copper sheath screwed into the cylinder of the hot water system.
1 1/4″ Bobbin Elements |
||||
---|---|---|---|---|
Part No.
|
Wattage
|
Penetration Length (mm)
|
Copper Sheath (Part No.)
|
Reference Link
|
B10
|
750
|
270
|
SH15
|
