Rocker Switches
Rocker switches, as denoted by the way the switch ‘rocks’ in a cradle to make the switching action, are available in all shapes and sizes. Rockers are much more varied than the toggle switch. Where the toggle switch has a relatively standard mounting size, the rocker switch is infinitely variable. Anything from mini-rockers at 12×14mm cutouts to large panel mounted cutouts at 35×40mm, with at least as many switching circuits as the toggle switch.
|
|
Part Number
|
Cutout size
|
Description
|
Amps / Volts
|

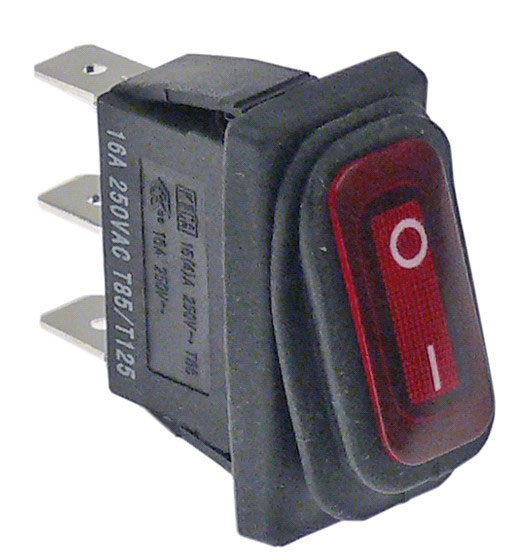

Single Pole Rocker Switches
|
 |
GEV301010
|
30mm x 11mm
|
Red illuminated
rocker switch with
O-I marking
|
16A/230V
|
 |
GEV301011
|
30mm x 11mm
|
Amber illuminated
rocker switch with
O-I marking
|
16A/230V
|
 |
GEV301012
|
30mm x 11mm
|
Green illuminated
rocker switch with
O-I marking
|
16A/230V
|
 |
GEV301013
|
30mm x 11mm
|
Black rocker
switch with O-I
marking
|
16A/230V
|
 |
GEV301053
|
30mm x 11mm
|
White rocker
switch with O-I
marking
|
16A/230V
|
Double Pole Rocker Switches
|
 |

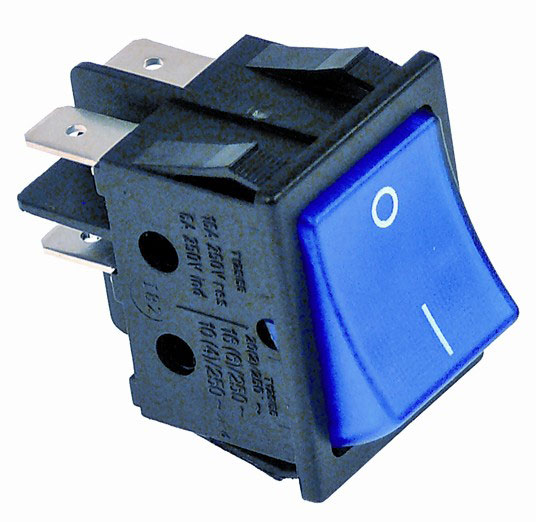

GEV301000
|
30mm x 22mm
|
Blue illuminated
rocker switch with
O-I marking
|
16A/250V
|
 |

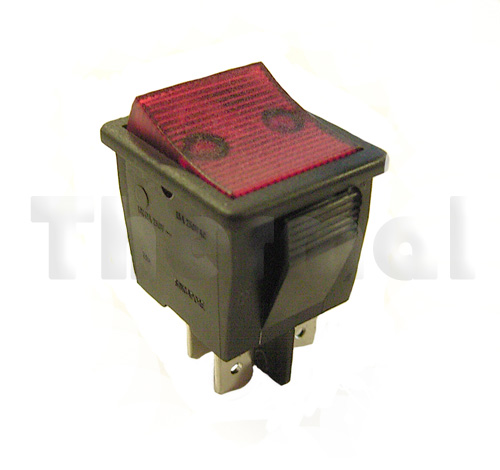

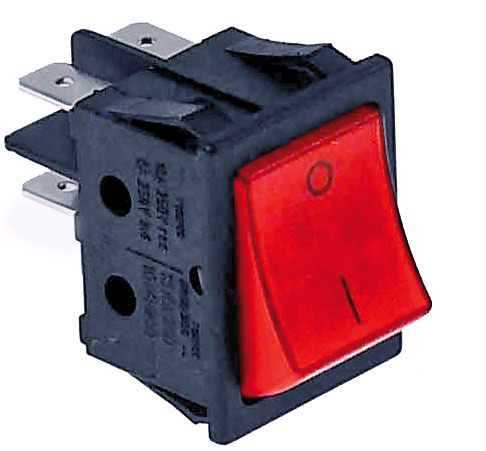

GEV301001
|
30mm x 22mm
|
Red illuminated
rocker switch with
O-I marking
|
16A/230V
|
 |

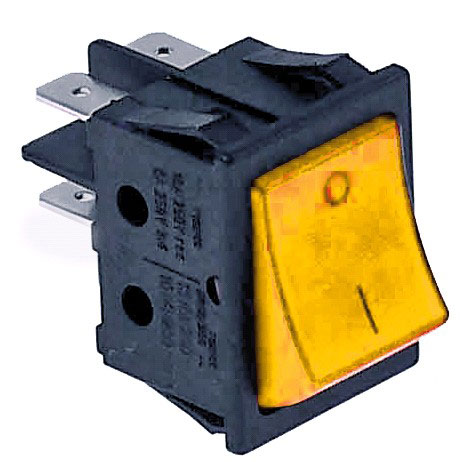

GEV301002
|
30mm x 22mm
|
Amber illuminated
rocker switch with
O-I marking
|
16A/230V
|
 |

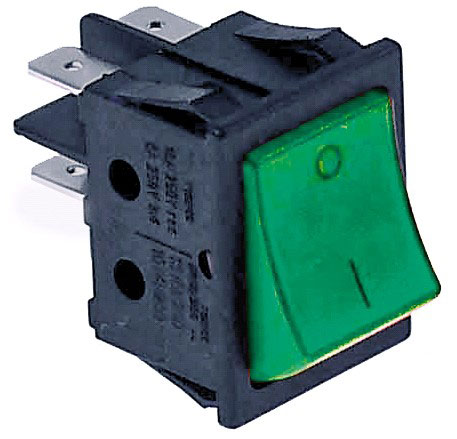

GEV301003
|
30mm x 22mm
|
Green illuminated
rocker switch with
O-I marking
|
16A/230V
|
 |

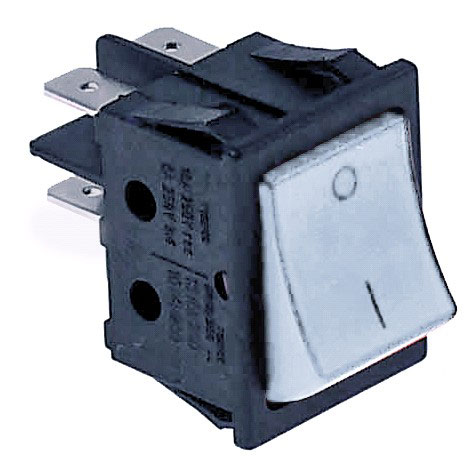

GEV301009
|
30mm x 22mm
|
White illuminated
rocker switch with
O-I marking
|
16A/230V
|
Single Pole Rocker Switches
|
 |
GEV301290
|
30mm x 11mm
|
Red illuminated
rocker switch with
O-I marking
|
16A/230V
|
 |

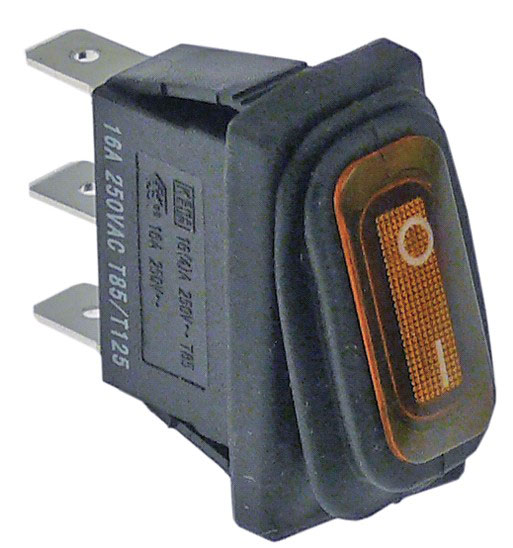

GEV301291
|
30mm x 11mm
|
Amberilluminated
rocker switch with
O-I marking
|
16A/230V
|
 |

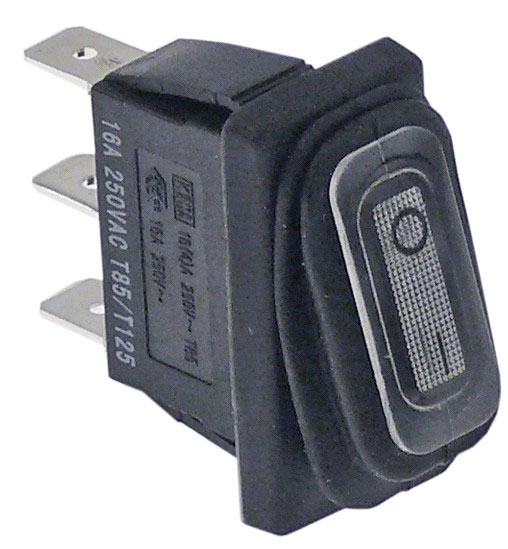

GEV301292
|
30mm x 11mm
|
White illuminated
rocker switch with
O-I marking
|
16A/230V
|
 |

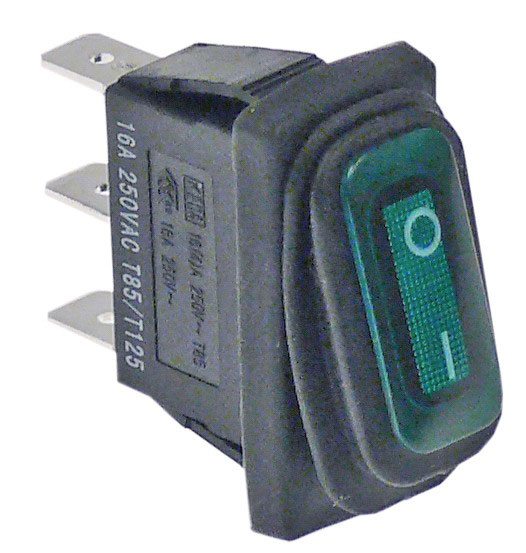

GEV301293
|
30mm x 11mm
|
Green illuminated
rocker switch with
O-I marking
|
16A/230V
|
Double Pole Rocker Switches
|
 |

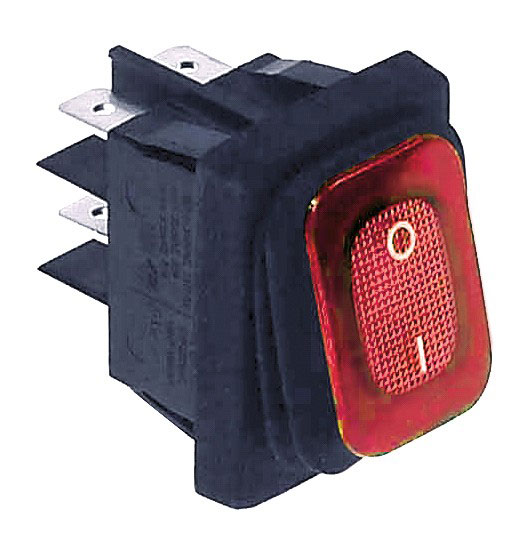

GEV345641
|
30mm x 22mm
|
Red illuminated
rocker switch with
O-I marking
|
16A/230v
|
 |

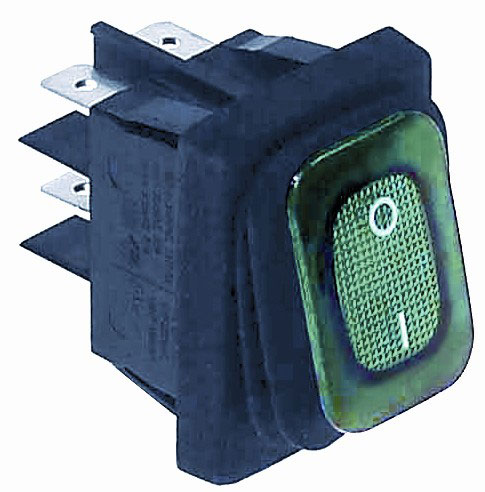

GEV345645
|
30mm x 22mm
|
Green illuminated
rocker switch with
O-I marking
|
16A/230V
|
 |
GEV346896
|
30mm x 22mm
|
Black illuminated
rocker switch with
O-I marking
|
16A/230V
|
 |

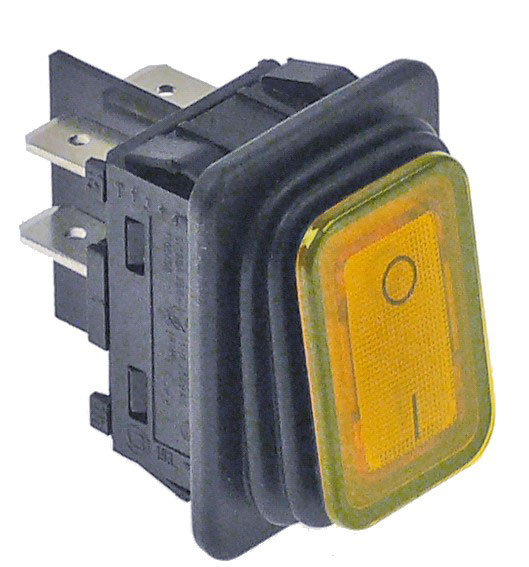

GEV346899
|
30mm x 22mm
|
Yellow illuminated
rocker switch with
O-I marking
|
16A/230V
|
|
|
Part Number
|
Cutout Size
|
Description
|
Amps/Volts
|
|
|

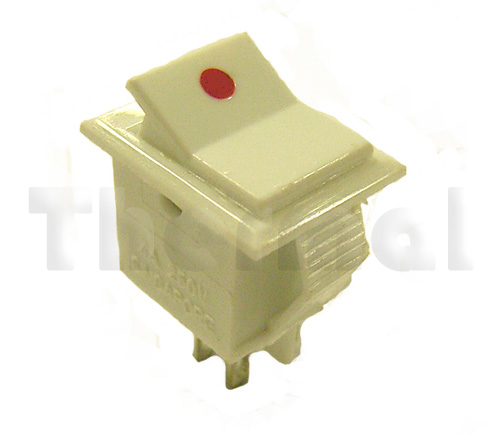

3570-039-19 (series 20)
|
16 x 13mm
|
DP On-Off Whi Solder Term
|
6A/125V 4A/250V
|
|
|

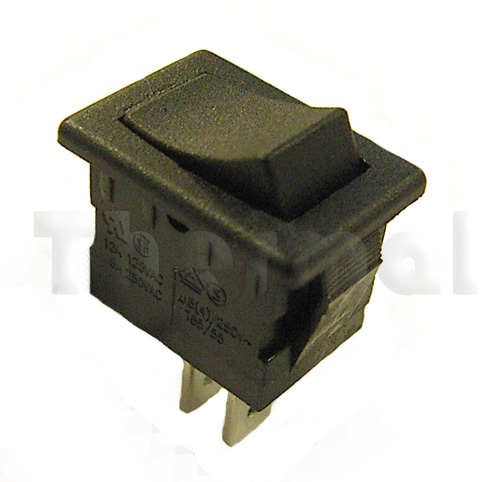

3633-001-01
|
19 x 13mm
|
SP On-Off Blk
|
12A/125V 6A/250V
|
|
|

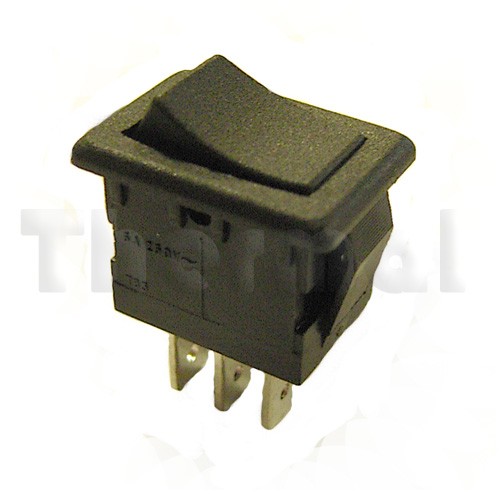

3633-011-01
|
19 x 13mm
|
SPDT On-On Blk
|
12A/125V 6A/250V
|
|
|

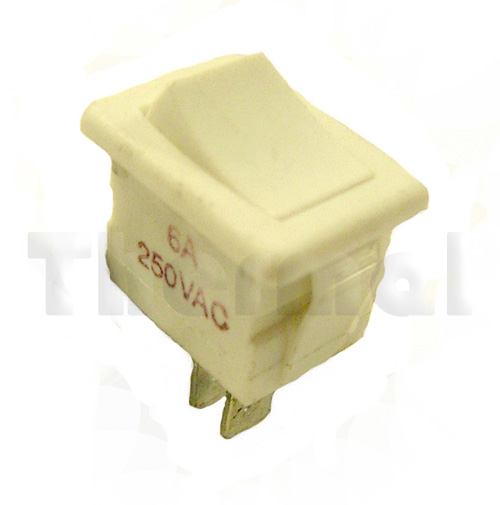

3633-009-09
|
19 x 13mm
|
SP On-Off Whi
|
12A/125V 6A/250V
|
|
|

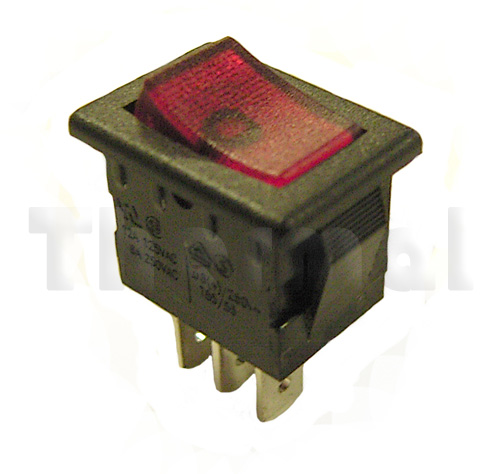

3633-091-02
|
19 x 13mm
|
SP On-Off Red Illuminated
|
12A/125V 6A/250V
|
|
|

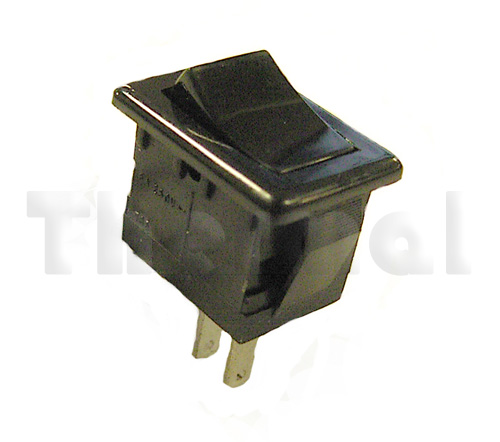

3635-051-41
|
19 x 13mm
|
SP <On>/Off
|
12A/125V 6A/250V
|
|
|

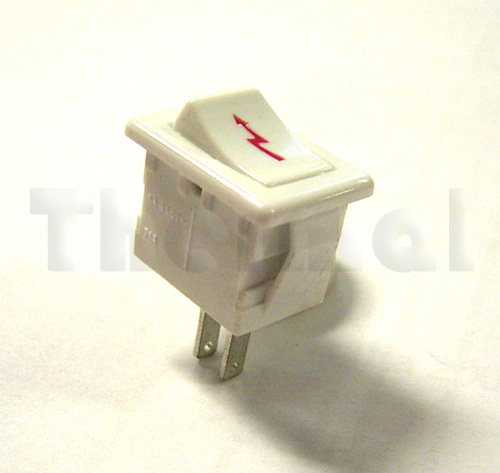

3635-059-49
|
19 x 13mm
|
SP <On>/Off
|
12A/125V 6A/250V
|
|
|
Part Number
|
Cut Out Size
|
Description
|
Amps/Volts
|
|
|
3705-837-01
|
17.5 x 12mm
|
SP On-Off Blk
|
15A/125V 7.5A/250V
|
|
|
Part Number
|
Cutout size
|
Description
|
Amps / Volts
|
|
|

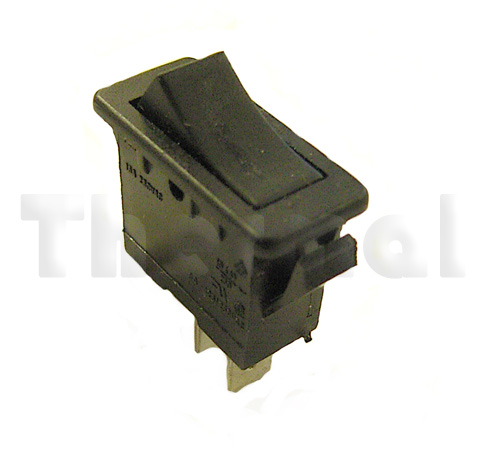

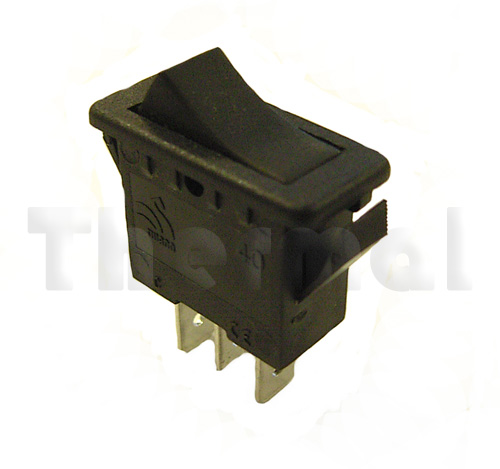

3340-001-11
|
27.5 x 12mm
|
SP On-Off Blk
|
16A/250V
|
|
|

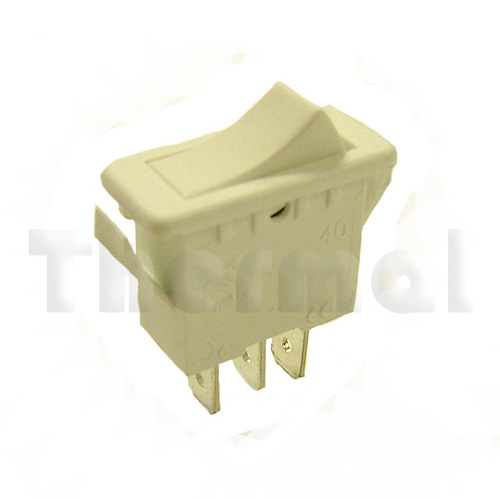

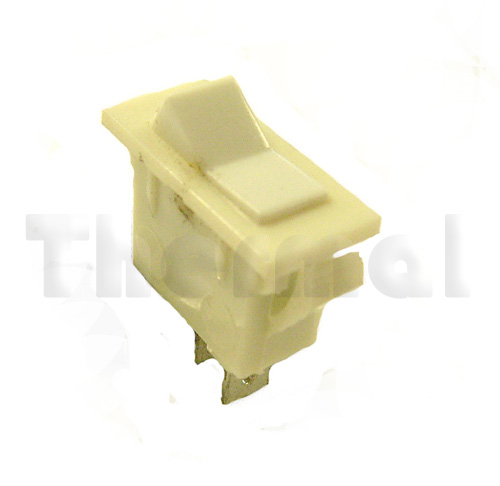

3340-009-19
|
27.5 x 12mm
|
SP On-Off Whi
|
16A/250V
|
|
|
3340-011-11
|
27.5 x 12mm
|
SP On-On Blk
|
16A/250V
|
|
|
3340-019-19
|
27.5 x 12mm
|
SP On-On Whi
|
16A/250V
|
|
|
3340-041-11
|
27.5 x 12mm
|
SP On-Off-On Blk
|
16A/250V
|
|
|
3340-051-11
|
27.5 x 12mm
|
SP Off-<On> Blk
|
16A/250V
|
|
|

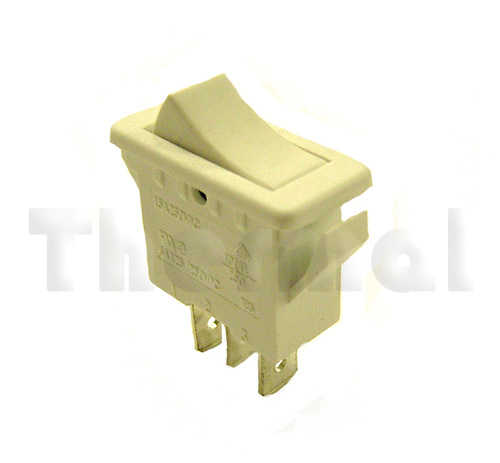

3340-079-19
|
27.5 x 12mm
|
Sp <On>-On Whi
|
16A/250V
|
|
|

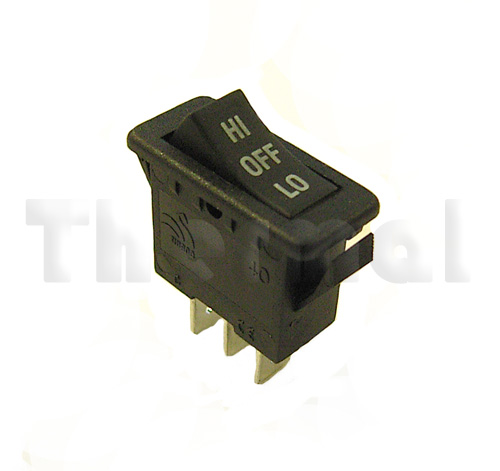

3340-848-11
|
27.5 x 12mm
|
SP Lo-Off-High
|
16A/250V
|
|
|

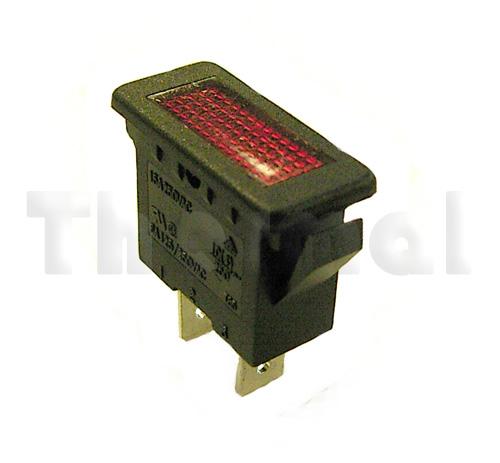

3157-01-02
|
27.5 x 12mm
|
Indicator Red
|
16A/250V
|
|
|

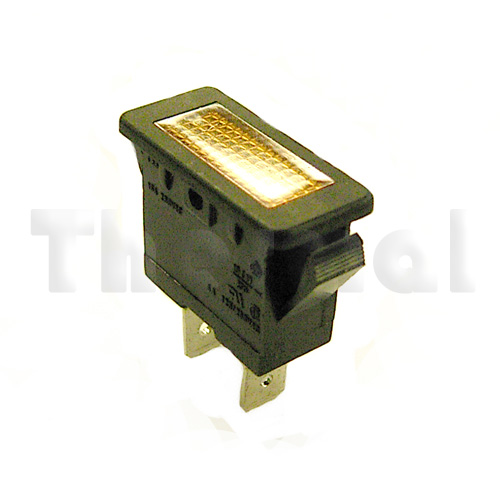

3157-01-03
|
27.5 x 12mm
|
Indicator Amber
|
16A/250v
|
|
|

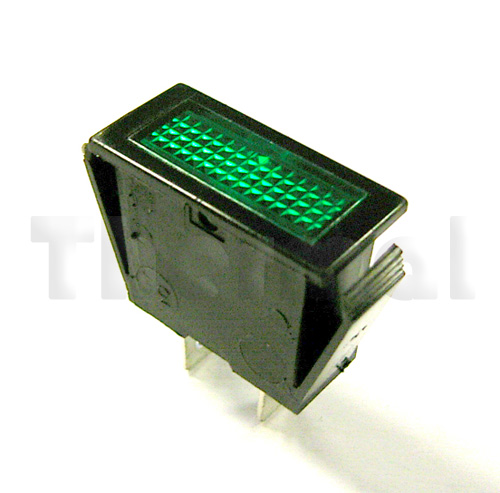

3157-01-05
|
27.5 x 12mm
|
Indicator Green
|
16A/250V
|
|
|
Part Number
|
Cutout Size
|
Description
|
Amps / Volts
|
|
|

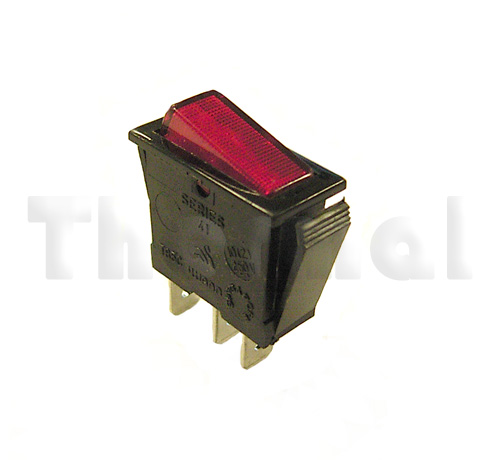

3440-021-12
|
28.6×11.5mm
|
SP On-Off Blk/Red Illum
|
15A/250V
|
|
|

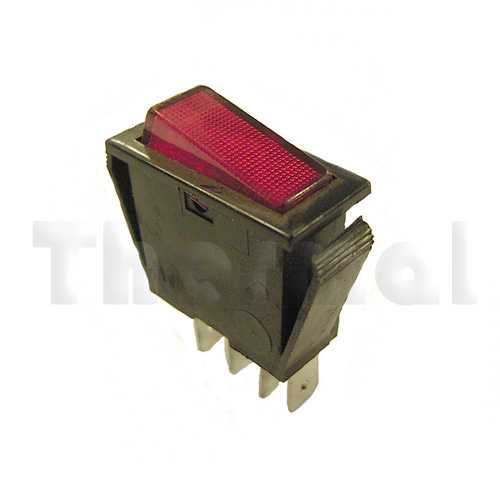

3440-031-12
|
28.6×11.5mm
|
SP On-On Blk/Red Illum
|
15A/250V
|
|
|
Part Number
|
Cut Out Size
|
Description
|
Amps/Volts
|
|
|
3350-001-91
|
27x22mm
|
DP On-Off Blk
|
10(4)A/250V
|
|
|
3350-041-91
|
27x22mm
|
DP On-Off-On Blk
|
10(4)A/250V
|
|
|
3350-031-92
|
27x22mm
|
DP On-On Blk/Red Illum
|
10(4)A/250V
|
|
|

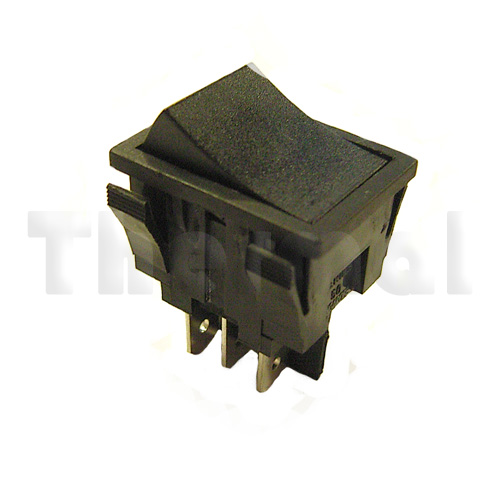

3351-011-91
|
27x22mm
|
DP On-On Blk 15A
|
10(4)A/250V
|
|
|

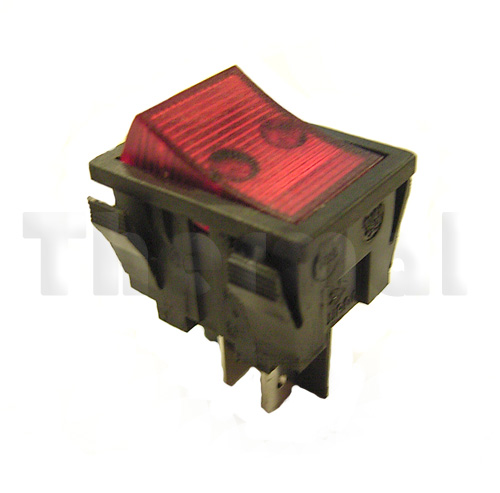

3351-081-92
|
27x22mm
|
DP On-Off Blk/Red Illum
|
10(4)A/250V
|
|
|

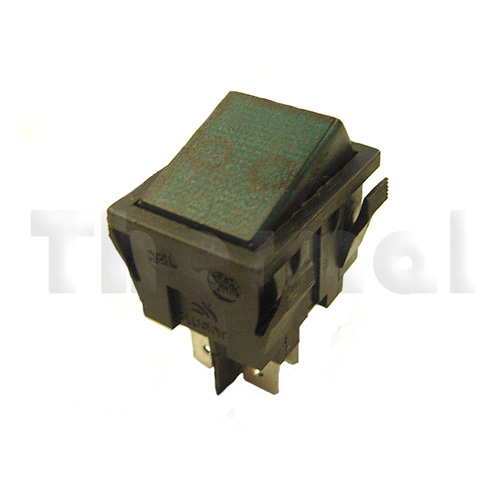

3351-081-95
|
27x22mm
|
DP On-Off Blk /Grn Illum
|
10(4)A/250V
|
|
|
3352-0141-11
|
27x22mm
|
DP On-Off-On Blk
|
10(4)/250V
|
|
|
3158-01-02
|
27x22mm
|
DP 4 Terminal Indicator
|
15A/250V
|
|
|

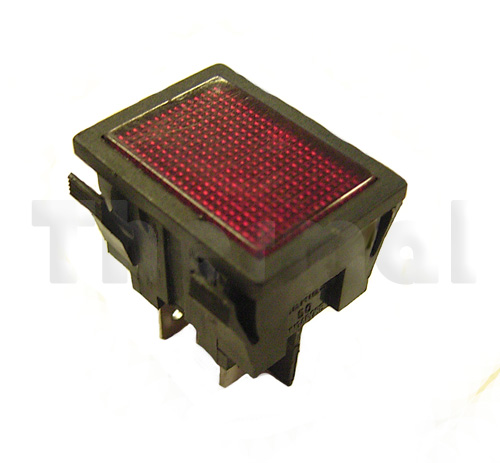

3158-41-02
|
27x22mm
|
SP 2 Terminal Indicator
|
15A/250V
|
|
|
Part Number
|
Cut Out Size
|
Description
|
Amps/Volts
|
|
|
3470-071-22
|
28.4x22mm
|
DP On-Off Blk/Red Illum
|
15A/250V
|
|
|

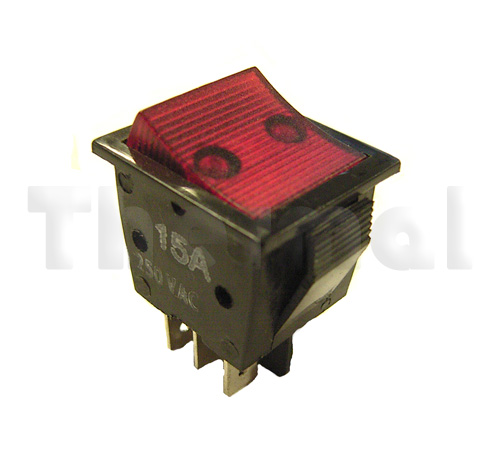

3470-081-22
|
28.4x22mm
|
DP On-On Blk/Red Illum
|
15A/250V
|
|
|
Part Number
|
Cut Out Size
|
Description
|
Amps/Volts
|
Alt. Part #
|
|
|

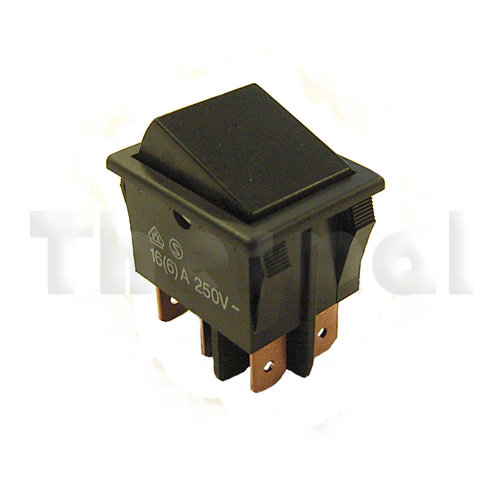

3790-011-11
|
30x22mm
|
DP On-On Blk
|
16A/240V
|
|
|
|
Part Number
|
Cut Out
|
Description
|
Amps/Volts
|
|
|

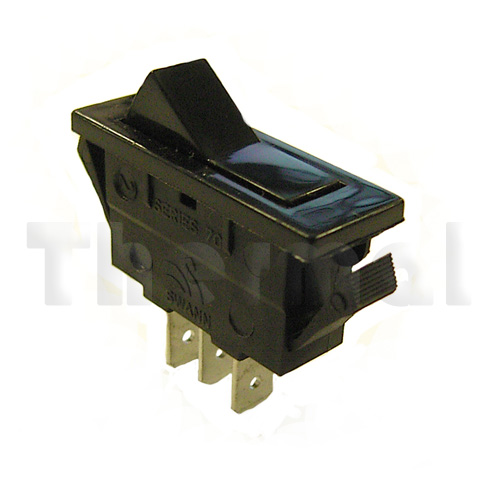

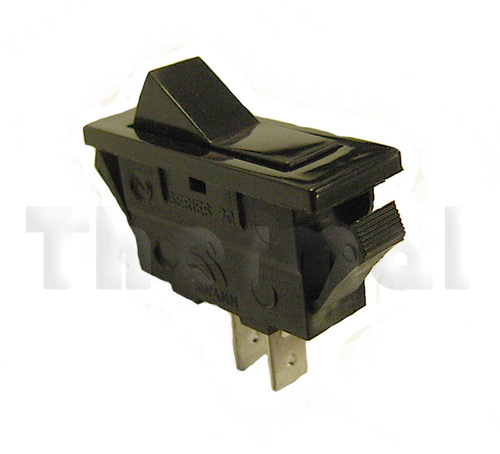

3370-001-01
|
38x12mm
|
SP On-Off Blk
|
15A/250V
|
|
|

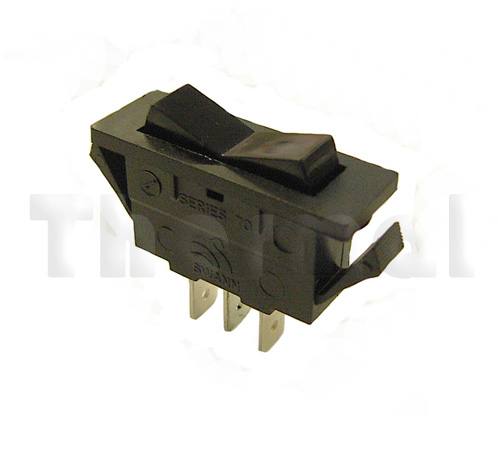

3370-011-01
|
38x12mm
|
SP On-On Blk
|
15A/250V
|
|
|
3370-0111-01
|
38x12mm
|
SP On-Off-On Blk
|
15A/250V
|
|
|

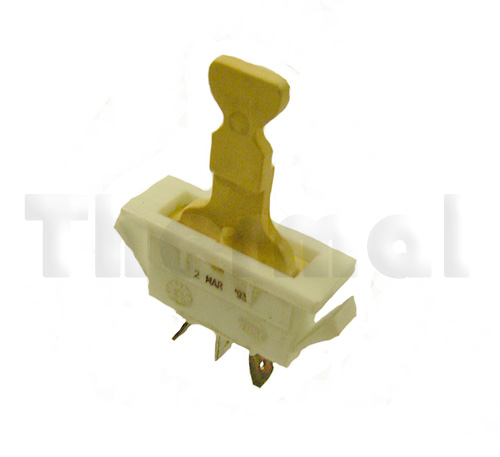

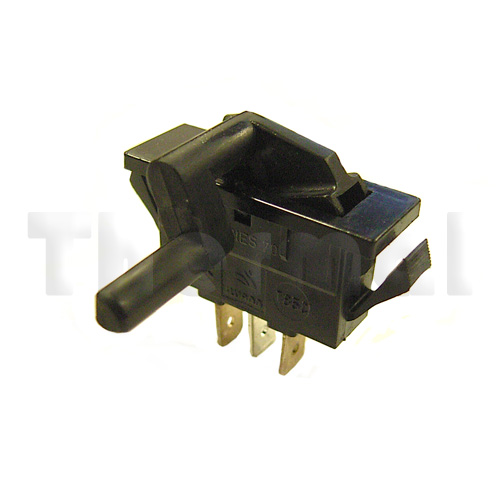

3370-833-90
|
38x12mm
|
SP On-Off-On “Rotary Arm” Lever
|
15A/250V
|
|
|

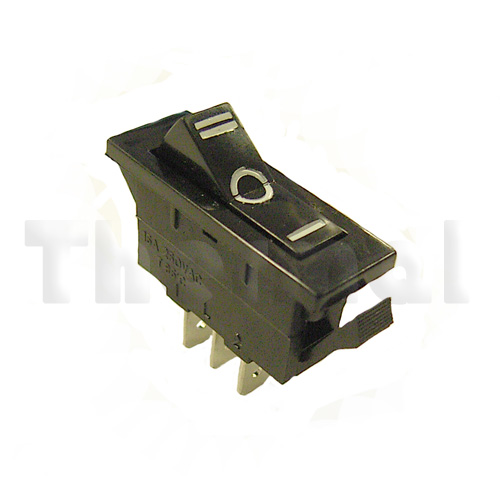

3370-855-01
|
38x12mm
|
SP On-Off-On Blk “I – O – II”
|
15A/250V
|
|
|

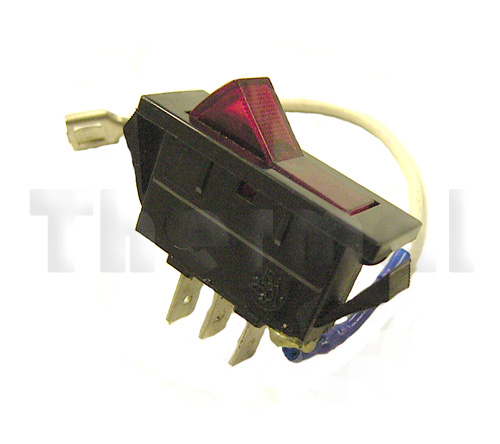

3370-827-02
|
38x12mm
|
SPDT On-Off-On Red Illum. With Wire
|
15A/250V
|
|
|

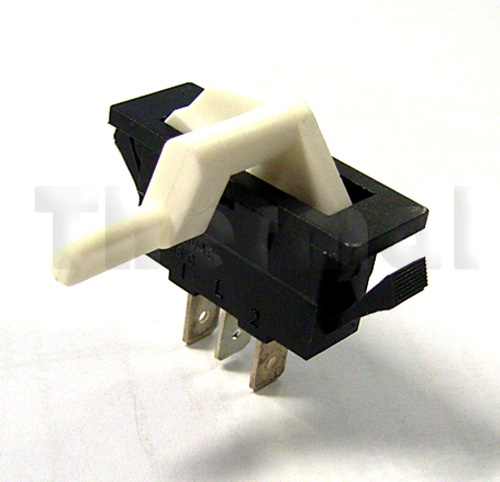

3370-847-91
|
38x12mm
|
SPDT On-Off-On BLK with Whi Rotary Arm
|
15A/250V
|
|
|
3370-851-90
|
38x12mm
|
SPDT On-Off-On Whi/Whi
|
15A/250V
|
|
|

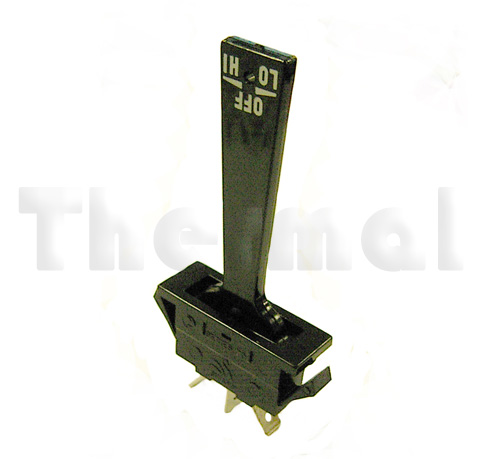

3374-041-61
|
38x12mm
|
SPDT On-Off-On Long Lever Printer Lo-OFF-Hi
|
15A/250V
|
|
|
Part Number
|
Cut Out Size
|
Description
|
Amps / Volts
|
|
|

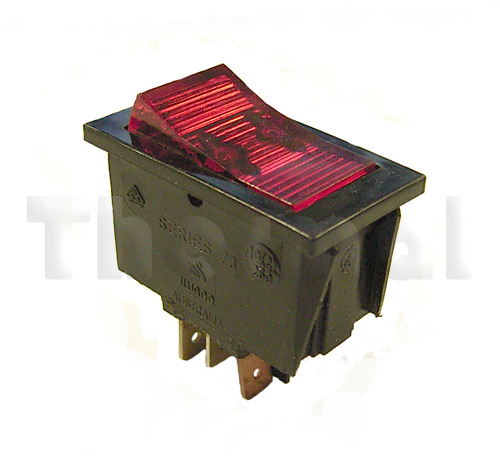

3390-061-22
|
38x20mm
|
DPDT On/On Blk/Red Illum
|
10(2)A/250V
|
|
|

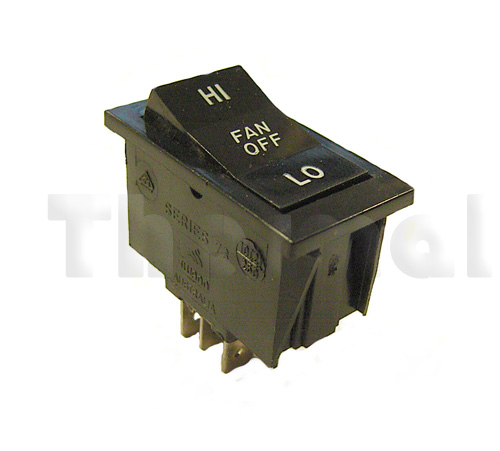

3390-816-21
|
38x20mm
|
DPDT On-Off-On Blk Printed Hi/Fan Off/Lo
|
10(2)A/250V
|
|
|

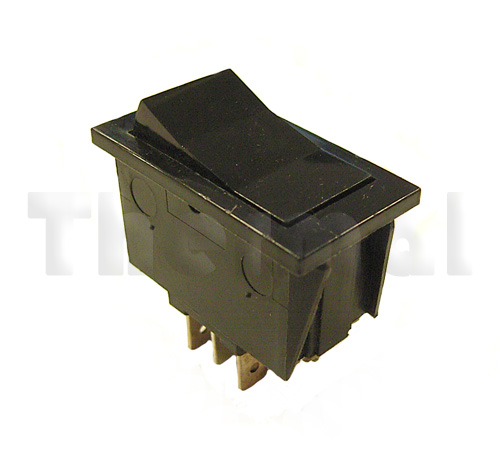

3390-011-21
|
38x20mm
|
DPDT On/On Blk
|
10(2)A/250V
|
|
|

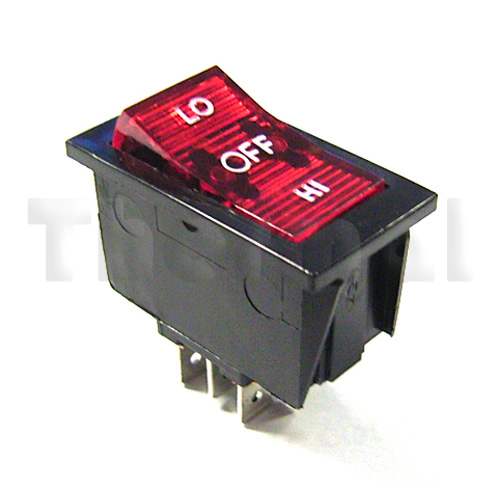

3390-818-22
|
38x20mm
|
DPDT On-Off-On Blk/Red Illum. Printed Hi/Off/Low
|
10(2)A/250V
|
|
|
Part Number
|
Cut Out Size
|
Description
|
Amps/Volts
|
|
|

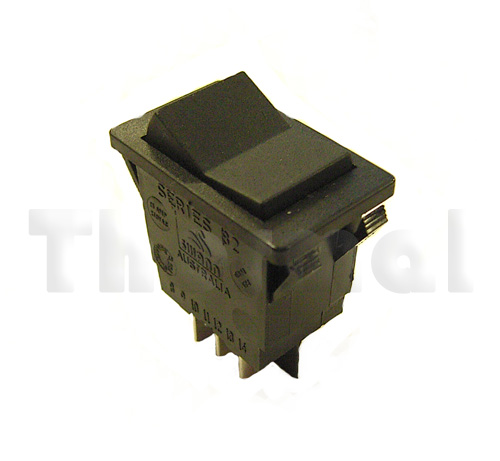

3411-021-11
|
36x21mm
|
DP On-On Blk
|
16A/250V
|
|
|

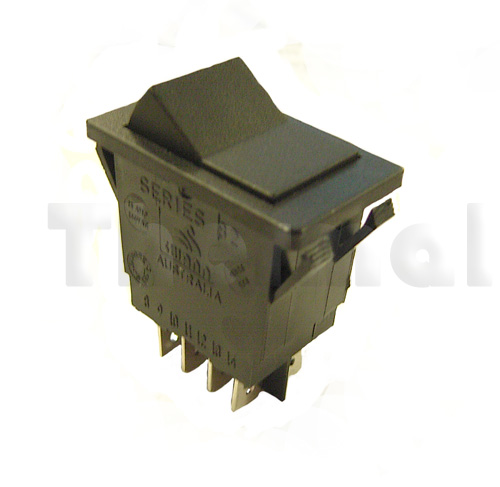

3411-051-21
|
36x21mm
|
DP On-Off-On Blk
|
16A/250V
|
|
|

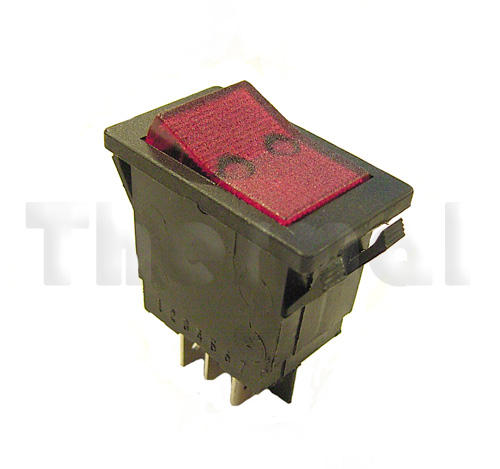

3411-141-12
|
36x21mm
|
DP On-On Blk/Red Illum
|
16A/250V
|
|
|

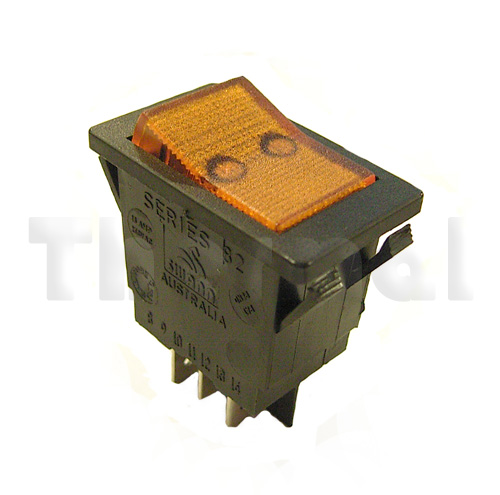

3411-141-13
|
36x21mm
|
DP On-On Blk/Amb Illum
|
16A/250V
|
|
|

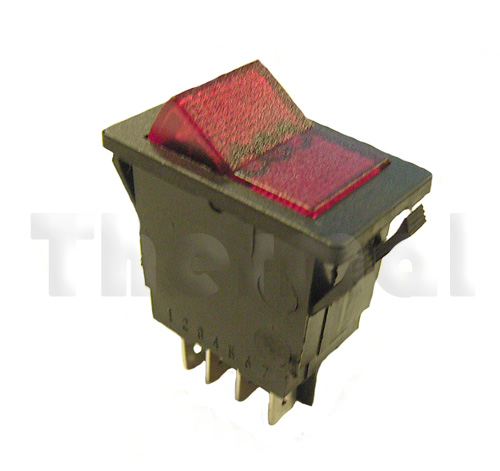

3411-161-22
|
36x21mm
|
DP On-Off-On Blk/Red Illum
|
16A/250V
|
|
|

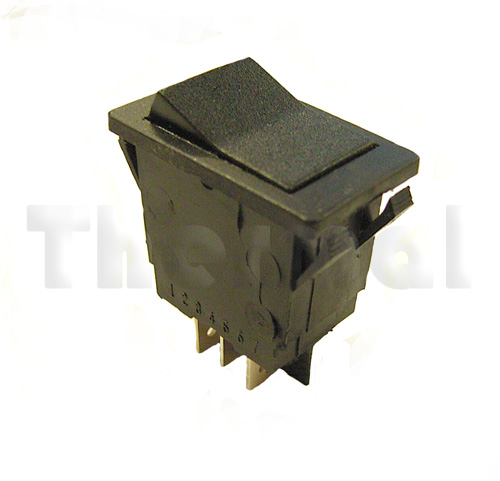

3411-771-11
|
36x21mm
|
DP On-<On> Blk
|
16A/250V
|
|
|
3411-828-11
|
36x21mm
|
SP 2Pos (3Term) Blk t/s Rinnai
|
16A/250V
|
|
|
3413-807-21
|
36x21mm
|
SP 3Pos (4Term) Blk t/s Rinnai
|
16A/250V
|
|
|
3411-161-23
|
36x21mm
|
DPDT On-Off-On Blk/Amb Illum
|
16A/250V
|

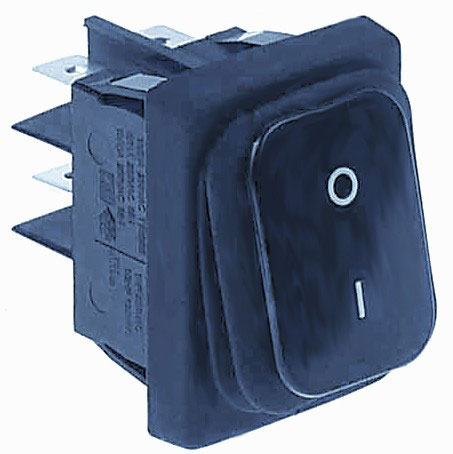

Comelux rocker switches are imported and distributed through Swann Electrics, and by default, Thermal Products. The range of switches available is not as comprehensive as Swann’s range, yet those that are available suit many applications. Also unique to this range is a “Splash proof” cover for the double pole rocker.
|
|
Part Number
|
Cut out Size
|
Description
|
Amp / Volt
|
More Info
|
|
|

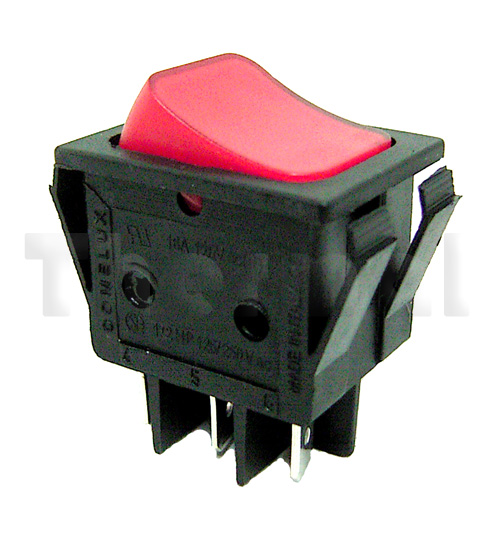

1300-20-00
|
28x22mm
|
MD0401 DPDT On-On Blk/Red Illum
|
15 Amp / 240V
|
|
|
|

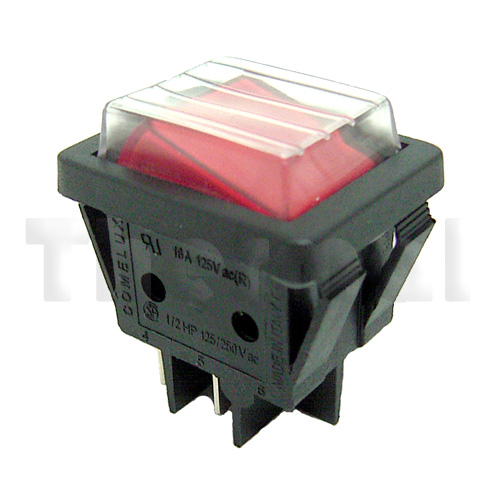

1300-20-02
|
28x22mm
|
MD0401 DPST On-Off Blk/Red Illum SPLASHCOVER
|
15 Amp / 240V
|
|
|
1300-20-03
|
28x22mm
|
RKR DPST 2POS On-OFF BLK/RED Illum
|
15 Amp / 240v
|
|
|

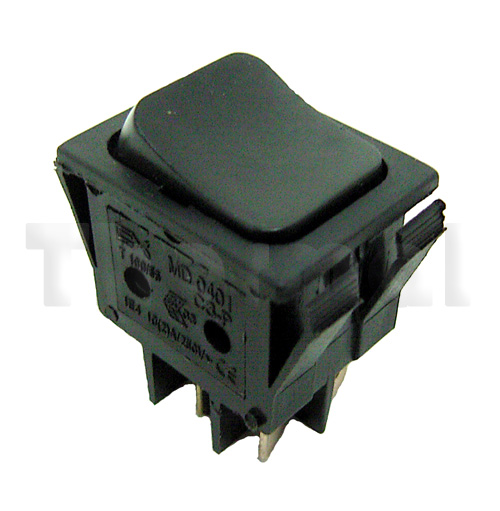

1300-21-01
|
28x22mm
|
MD0401 DPST On-Off-On Blk
|
|
|
|

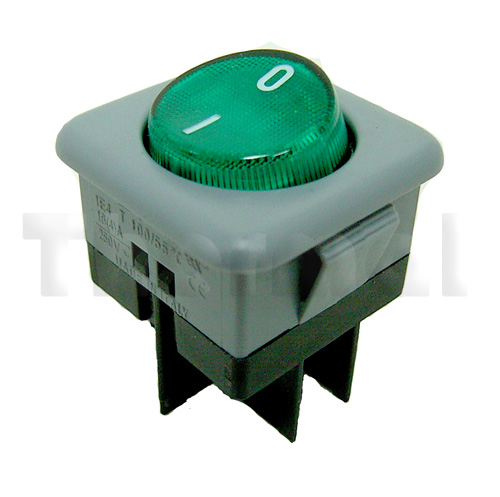

1300-22-05
|
25x25mm
|
MD50 DPST On-Off Illum
|
15 Amp / 240V
|
|
|

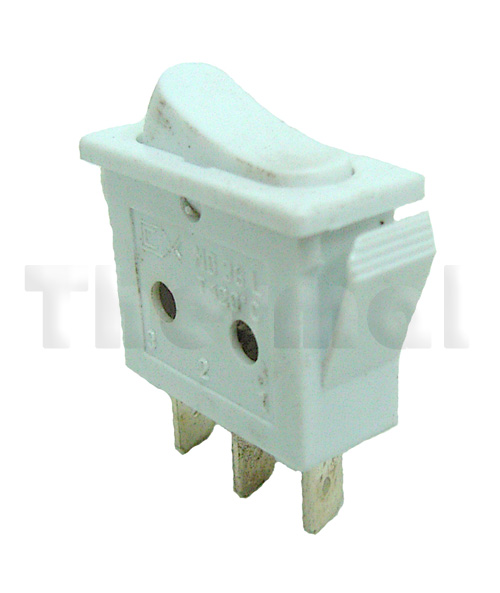

1300-23-01
|
28x12mm
|
MD036 SPDT On-Off-On White
|
15 Amp / 240V
|
|
|

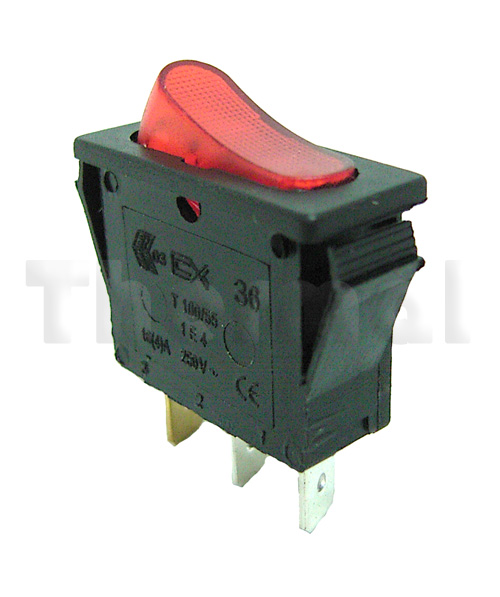

1300-23-02
|
28x12mm
|
MD036 SPST ON-OFf Blk/Red Illum
|
15 Amp / 240V
|
|
|

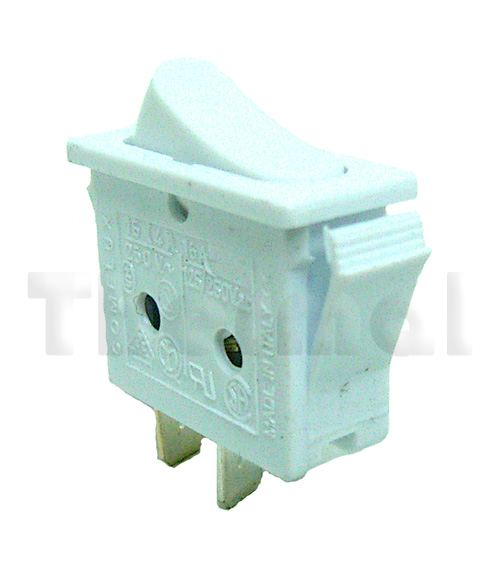

1300-23-03
|
28x12mm
|
MD036 SPST On-Off Whi
|
15 Amp / 240V
|
|
|

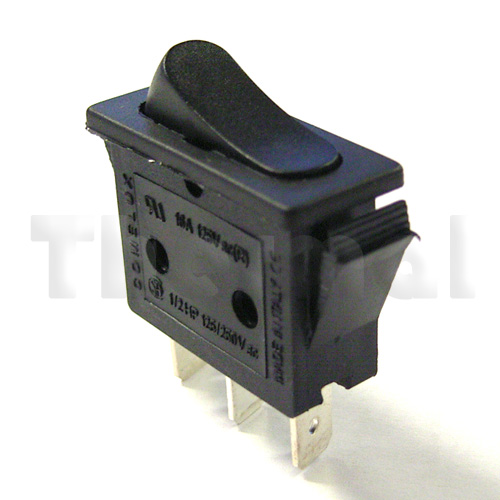

1300-23-06
|
28x12mm
|
MD036 SPDT On-On BLK
|
15 Amp /240V
|
|
|

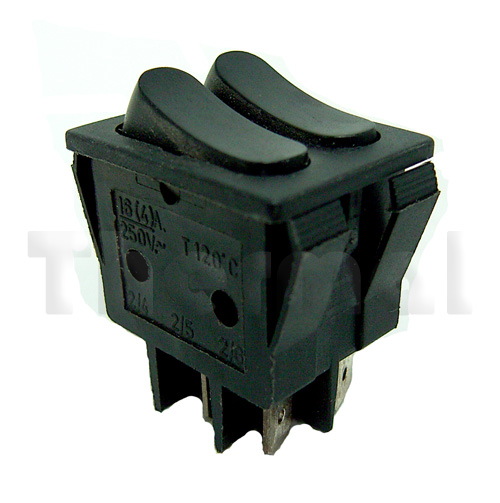

1300-23-07
|
28x22mm
|
RKR x 2 SPST On-Off BLK
|
15 Amp / 240V
|
|
|

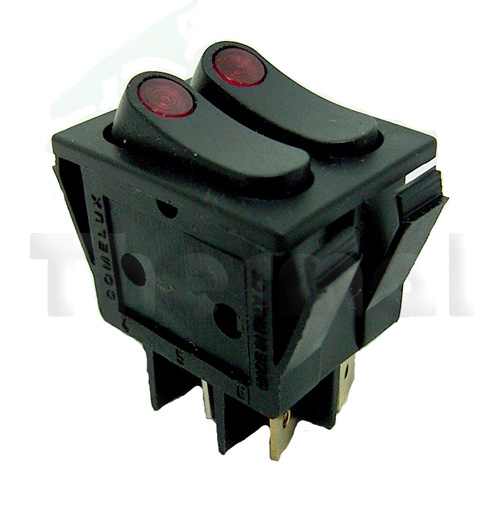

1300-23-09
|
28x22mm
|
RKR x 2 SPDT On-On BLK/Red Illum (S5)
|
15 Amp / 240V
|
Cutler Hammer switches are available in more diverse switching combinations. Three types of rockers are listed.
Descriptors with brackets around a state ‘< state >’ denote a momentary action. This means that once the lever is released it will revert to the position NOT bracketed.
SP = Single Pole, DP = Double Pole.
ST = Single Throw, DT = Double Throw.
|
|
Part Number
|
Description
|
Amp / Volt
|
|
|
1600-11E
|
SPST On-Off Blk
|
16Amp / 250V
|
|
|

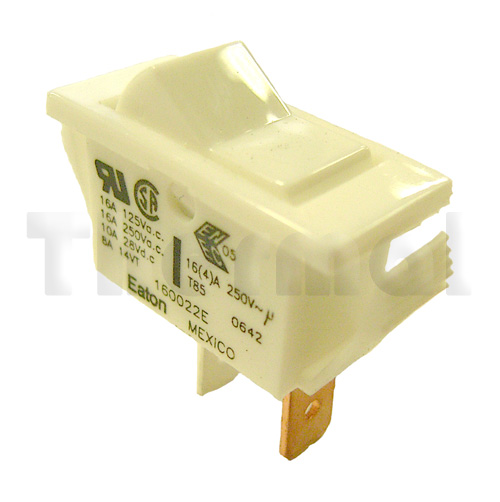

1600-22E
|
SPST On-Off Whi
|
16Amp / 250V
|
|
|

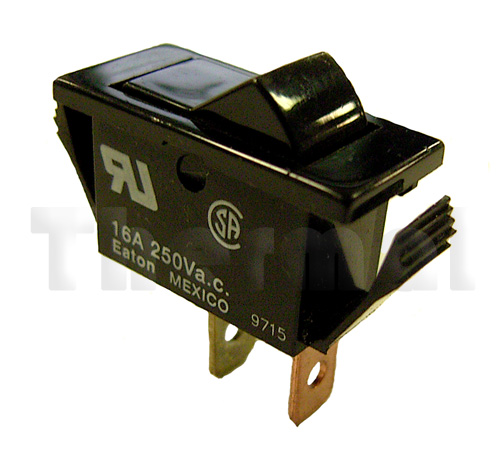

1601-11E
|
SPDT <On>-Off Blk
|
16Amp / 250V
|
|
|

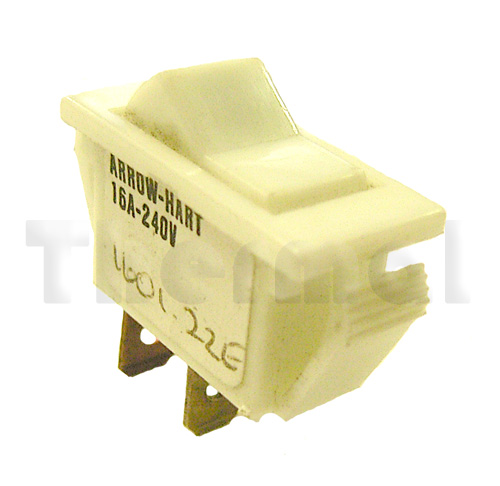

1601-22E
|
SPDT <On>-Off Whi
|
16Amp / 250V
|
|
|

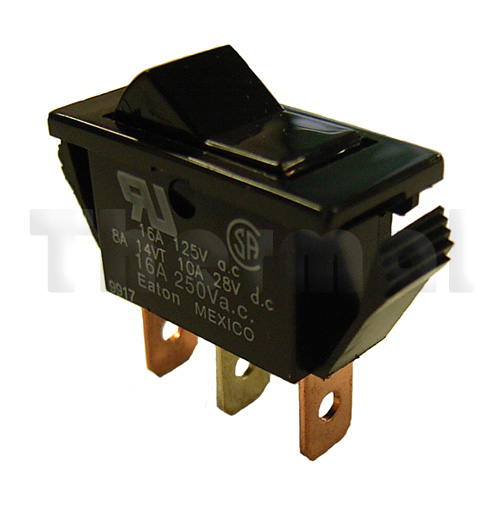

1602-11E
|
SPDT On-On Blk
|
16Amp / 250V
|
|
|

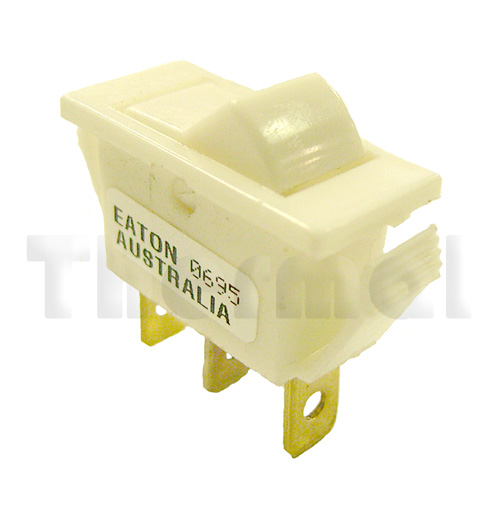

1602-22E
|
SPDT On-On Whi
|
16Amp / 250V
|
|
|

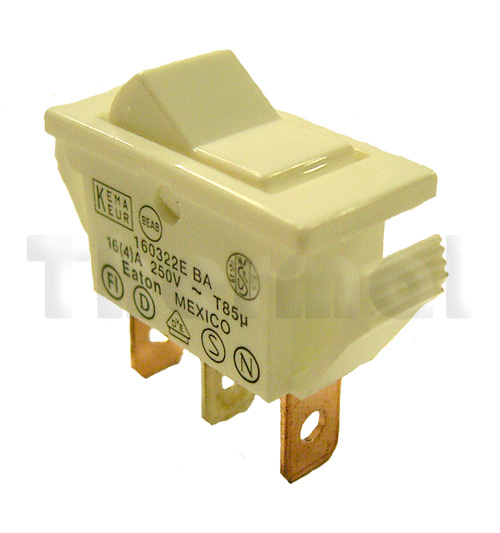

1603-22E
|
SPDT On-<On> Whi
|
16Amp / 250V
|
|
|
1604-11E
|
SPDT On-Off-On Blk
|
16Amp / 250V
|
|
|
1604-22E
|
SPDT On-Off-On Whi
|
16Amp / 250V
|
|
|
1605-22E
|
SPST On-<Off> Whi
|
16Amp / 250V
|
|
|

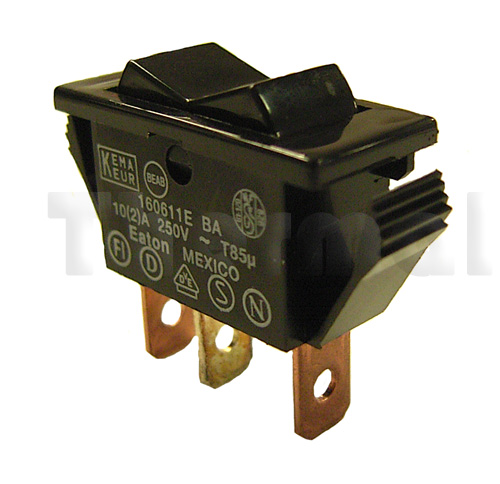

1606-11E
|
SPDT <On>-Off-<On> Blk
|
16Amp / 250V
|
|
|

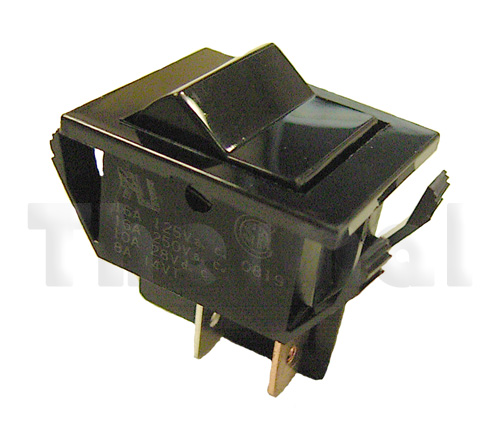

2600-11E
|
DPST On-Off Blk
|
16Amp / 250V
|
|
|

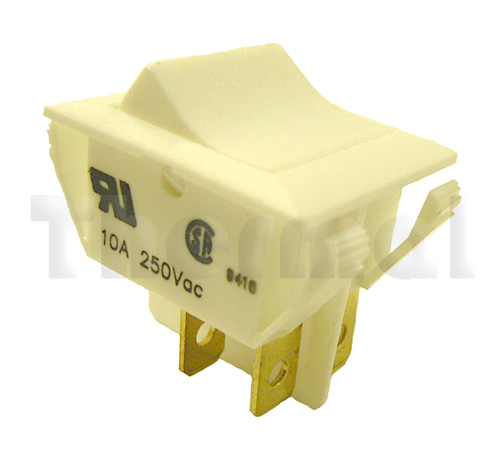

2600-22E
|
DPST On-Off Whi
|
16Amp / 250V
|
|
|

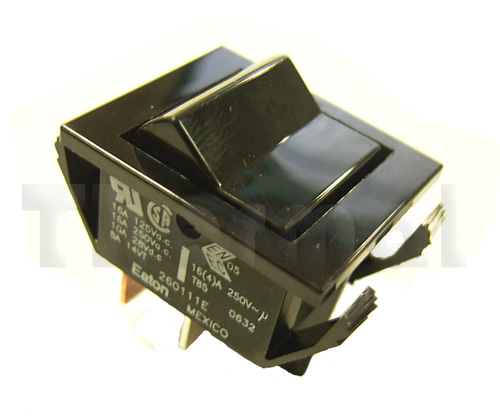

2601-11E
|
DPST <On>-Off Blk
|
16Amp / 250V
|
|
|

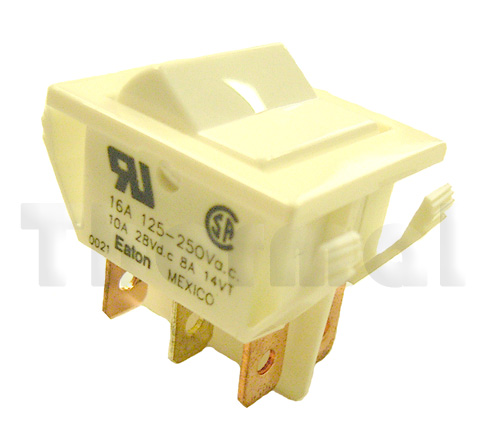

2602-22E
|
DPDT On-On Whi
|
16Amp / 250V
|
|
|
2604-11E
|
DPDT On-Off-On Blk
|
16Amp / 250V
|
|
|
2604-22E
|
DPDT On-Off-On Whi
|
16Amp / 250V
|
|
|

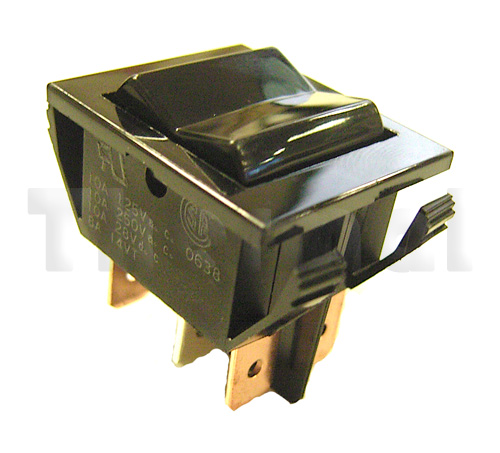

2606-11E
|
DPDT <On>-Off-<On> Blk
|
16Amp / 250V
|
|
|
2606-22E
|
DPDT <On>-Off-<On> Whi
|
16Amp / 250V
|
