Room Thermostats

There are many brands of room thermostats available to the general public. Any home with a form of central heating/cooling will have a room thermostat fitted. Some thermostats are specific to the type of central system (such as ducted, slab-heating or hydronic), and some are generic, able to perform a range of standard functions.

Thermal Products stock a large variety of replacement thermostats that suit a variety of applications. And for those thermostats we don’t stock we can usually source the specific part, or suggest a more readily-available equivalent.

Honeywell Room Thermostats

Part No.
Description
Reference Link

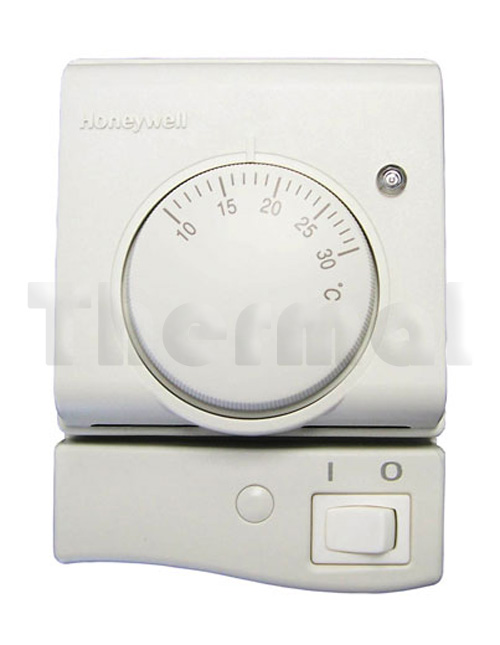

T4360G1006
The T4360G thermostat with on/off switch provides control of 240Vac heat only systems with a maximum current of 16A
T6360D1008
The T6360D Thermostat with On/Off switch provides control of 240Vac Cool only systems
T6376B1004

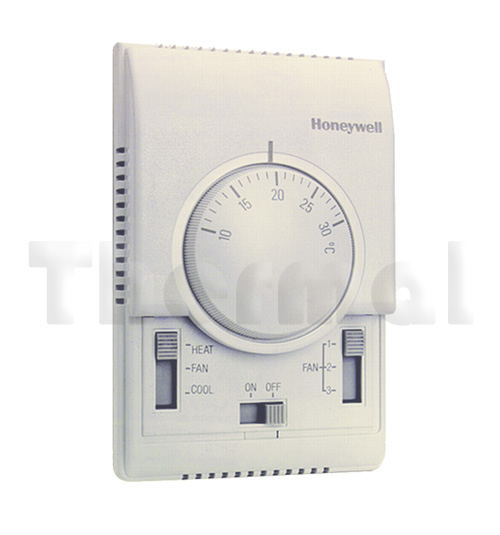

The T6376 thermostats are designed to control the valves, the fan and the compressor in split units, heatpumps and small air conditioners. All from one thermostat.
T6377B1011
The T6377 thermostats are designed to control the valves, the fan and the compressor in split units, heatpumps and small air conditioners. All from one thermostat.

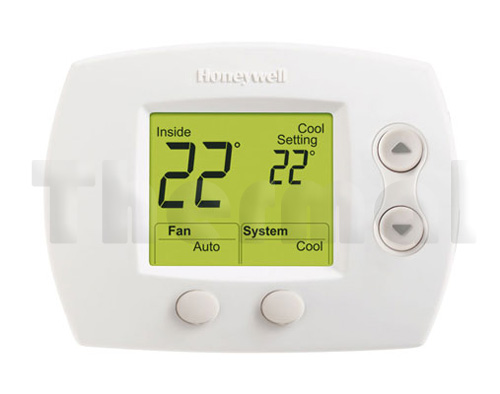

TH5110D1022/U
The TH5110D Non-Programmable thermostat provides electronic control of 24Vac, single stage heating and cooling systems or 750mV heating systems.
TH6110D1021/U
The TH6110D is a Programmable Thermostat and provides electronic control of 24Vac, single stage heating and cooling systems or 750mV heating systems.
TH8110U1003/U
The TH8110 is an effortless, 7-Day programmable thermostat that provides universal system compatibility, precise comfort control, touchscreen, and is easy-to-program. These thermostats provide temperature control for gas, oil, electric and heat pumps for 1 heat, 1 cool systems.
CMR707A1049

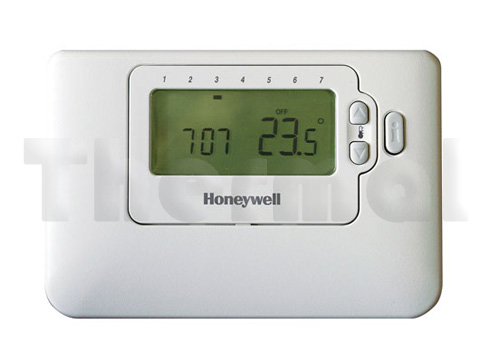

The CM707 is a slim, 7 day programmable thermostat, with 12/24hr time display, 4 independant time/temp changes per day, temporary temp overide, holiday setting, EEPROM memory and more. It can be used as part of a system in conjunction with combi-boilers, oil-burners and gas fired boilers, circulation pumps, thermal actuators, zone valves and electric heat systems (<5A). 24/230V 5(2)A rated, 5–35°C temp range in 0.5°C increments and takes 2×AA Batteries (low battery warning indicator).

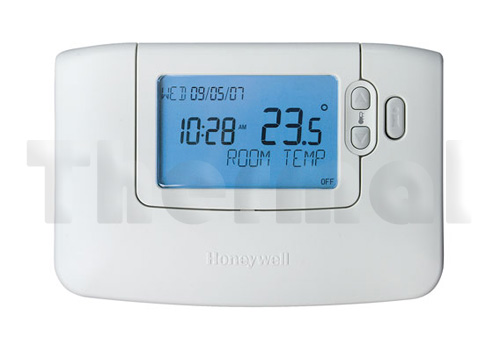

CMT907A1041
The CM907 is a slim, 7-day programmable thermostat similar in appearance to the CM707, but has a lot more functionality. Comes with a backlit, large LCD display with dynamic text, 6 independent time/temp changes per day, Party/Day Off and Holiday features, EEPROM memory and more. It can be used as part of a system in conjunction with combi-boilers, oil-burners and gas fired boilers, circulation pumps, thermal actuators, zone valves and electric heat systems (<8A). 24/230V 5(2)A rated, 5–35°C temp range in 0.5°C increments and takes 2×AA Batteries (low battery warning indicator).

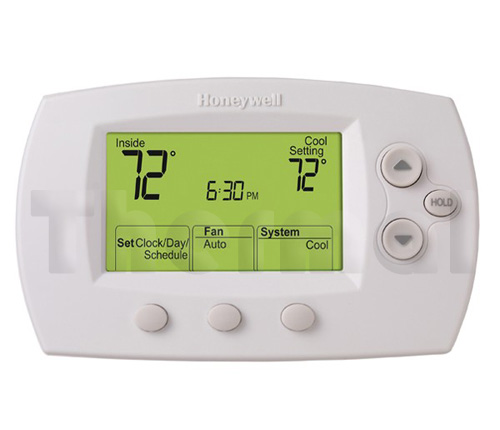

TH6220D1024/U
The TH6220D is a Programmable Thermostat and provides electronic control of 24Vac, single stage and multi-stage heating and cooling systems or 750mV heating systems.

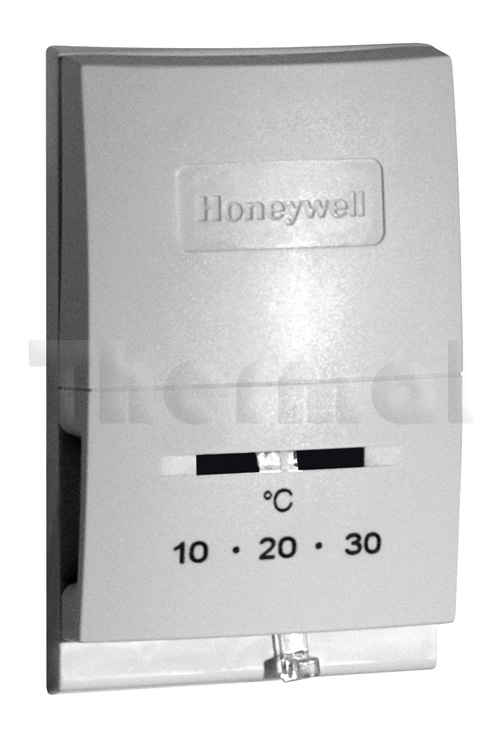

T822D
The T822D, vertically mounts on the wall to control your heating system. Features a unique setting lever and thermometer scale. Straight-in wiring capability makes installation easy.
DT90A1008

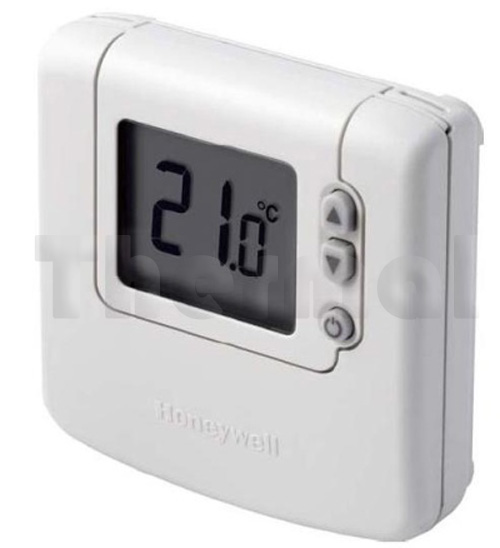

The DT90 room thermostat is a simple room thermostat with a large digital display. Simple Up, Down On/Off operation. 24–230V SPDT switching suits 2-wire installation. Temperature range of 5–35°C, in 0.5°C increments.

Siemens Room Thermostats

Part No.
Description
Reference Link
RAA11
RAA11
The RAA11 is a Tamper-proof thermostat. The Faceplate is blank, with the temperature Dial inside the Thermostat.
RAA31

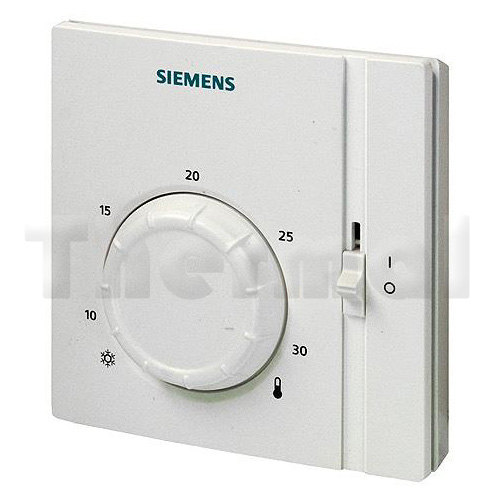

The RAA31 is a heating OR cooling manual adjusting room thermostat. 24…250V, this non-programmable thermostat features a range from 8 to 30°C.
RDE100.1
RDE100.1
The RDE100.1 is a super-slim room thermostat. 7 Day programmable, 24 periods per day with On/Off/Program functions. Easy to program, 5–35°C temperature range, in 0.5°C increments. The 100.1 controller is a 24V control with 2×AAA battery back up. Can be used to control thermal actuators, zone valves, gas or oil burners, fans & pumps.

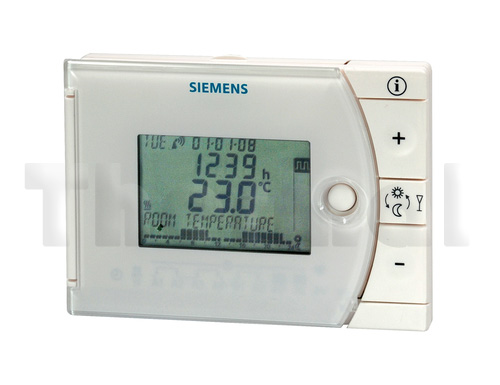

REV13
The REV13 has 5 operating modes and a unique wheel button operation for menu/submenu selection. Suitable for 24/240VAC 6(2.5)Amp operation, and takes 2×AAA batteries .It can be used to control solenoid valves for instantaneous water heaters and atmospheric gas burners, forced draft gas or oil burners, circulating pumps in heating systems, zone valves, electric direct heating systems or fans of electric storage heaters and thermal actuators.

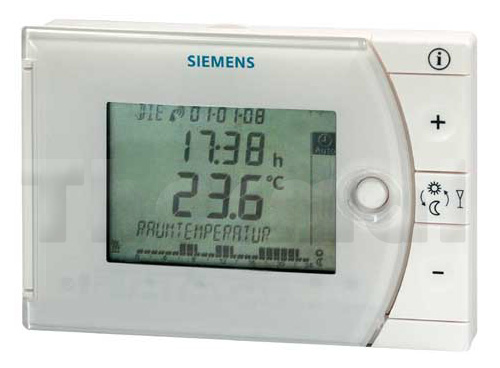

REV17
The REV17 has 5 operating modes and a unique wheel button operation for menu/submenu selection. Mains-independent room temperature controller. Choice of operating modes: automatic with maximum 3 heating periods, continuously comfort mode, continuously economy mode, frost protection with one 24-hour operating mode and one heating period.

Imit Room Thermostats

Part No
Description
Reference Link
TA3
TA3

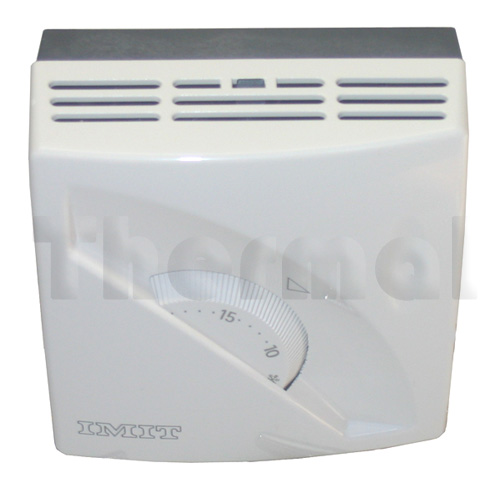

The TA3 is a room thermostat equipped with gas filled bellows. It features a modern design with an ergonomically designed easily removed knob.
  Fact Sheet

White Rodgers Room Thermostats

Part No.
Description
Install Instructions
Spec Sheet
TPGW0005

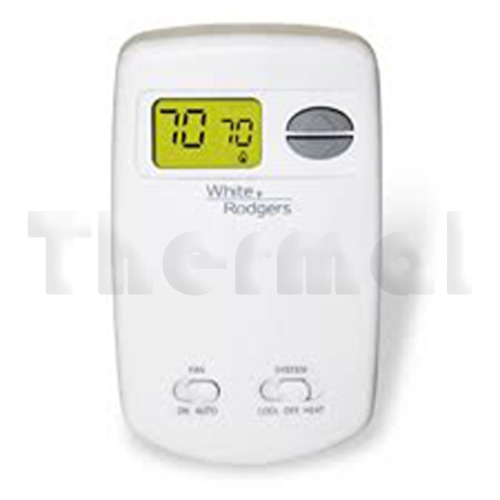

The WR 1E78-140 Single stage, Digital, Non-Programmable, Heating Thermostat features include; a vertical design, on/off switch, and a lighted display. Suitable for Millivolt systems.

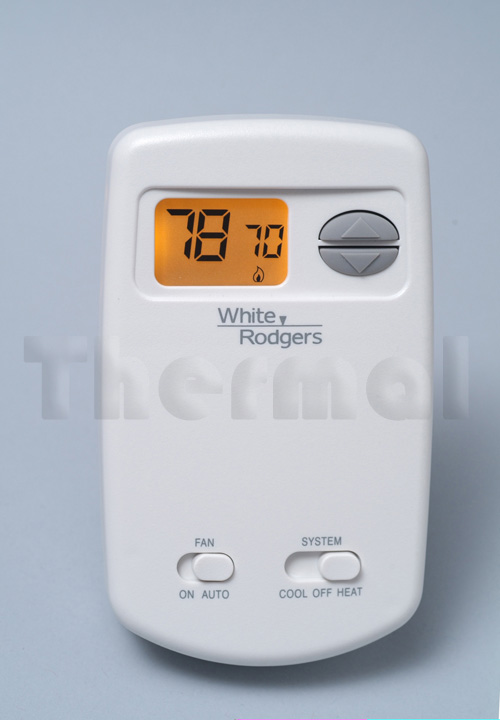

TPGW0006
The WR 1E78-144 Single Stage, Digital, Non-Programmable, Heating and Cooling Thermostat features include; a vertical design, Cool/Off/Heat Switch, and a fan switch. Suitable for Millivolt systems.
TPGW0001

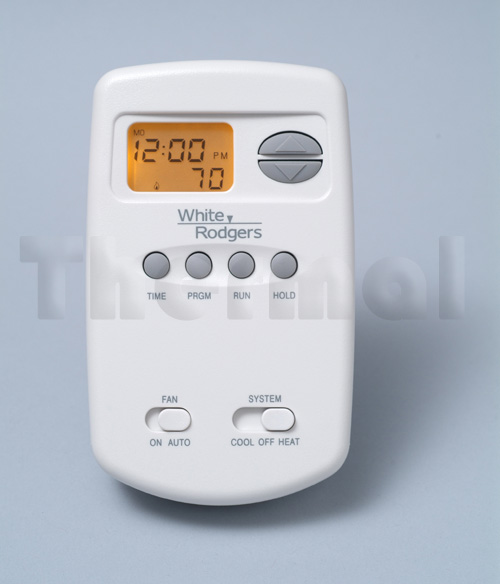

The WR 1E78-151 Single Stage, Digital, 5/2 Day Programmable, Heating and Cooling Thermostat features include; a vertical design, Cool/Off/Heat switch, and a fan switch. Suitable for millivolt systems.
TPGW0004
The WR 1F78-144 Single Stage, Digital, Non-Programmable, Heating and Cooling Thermostat features include; a horizontal design, Cool/Off/Heat switch, and a fan switch. Suitable for Millivolt systems.

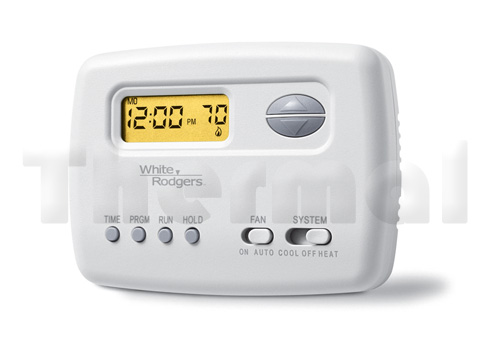

TPGW0009
The WR 1F78-151 Single Stage, Digital, 5/2 Day Programmable, Heating and Cooling Thermostat features include; a horizontal design, Cool/Off/Heat switch, and a fan switch. Suitable for millivolt systems.

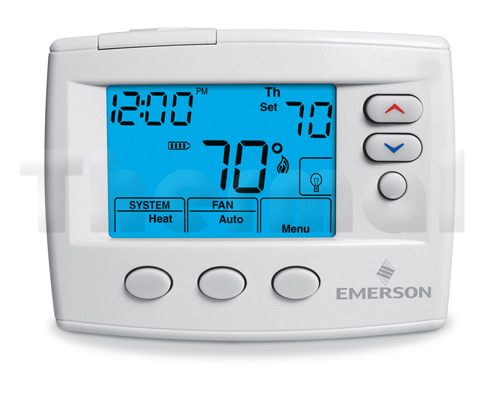

TPGW0019-0471
The WR 1F80-0471 Single Stage, Digital, 5/2 Day Programmable or Non Programmable, Heating and Cooling Thermostat features include, a horizontal design, 4 Square inch display, 3 wire zone valve, suitable for millivolt systems

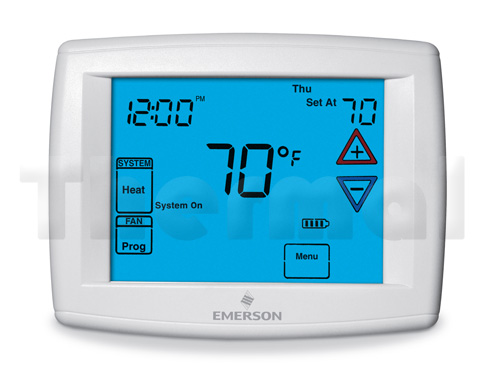

TPGW00172BLUR
The WR 1F97-1277, 1 Heat/1 Cool, Digital, 7 day programmable, Heating and Cooling Thermostat features include, 12″ LCD touchscreen display, Auto Changeover, programmable fan, indoor and outdoor remote sensor. Suitible for millivolt systems and 3 wire zone systems.
 Installation   Fact Sheet

Thermostat Guards

Image Part No. Description
TG510A1001 THERMOSTAT GUARD SMALL CLEAR PLASTIC COVER AND RING BASE
TG511A1000 ENCLOSURE, CLEAR, LOCKABLE, ROOM T/STAT
