Cutler-Hammer Push Button Switches

Descriptors with brackets around a state ‘< state >’ denote a momentary action. This means that once the lever is released it will revert to the position NOT bracketed.
SP = Single Pole, DP = Double Pole.
ST = Single Throw, DT = Double Throw.

Image	Part Number	Description	Amp / Volt

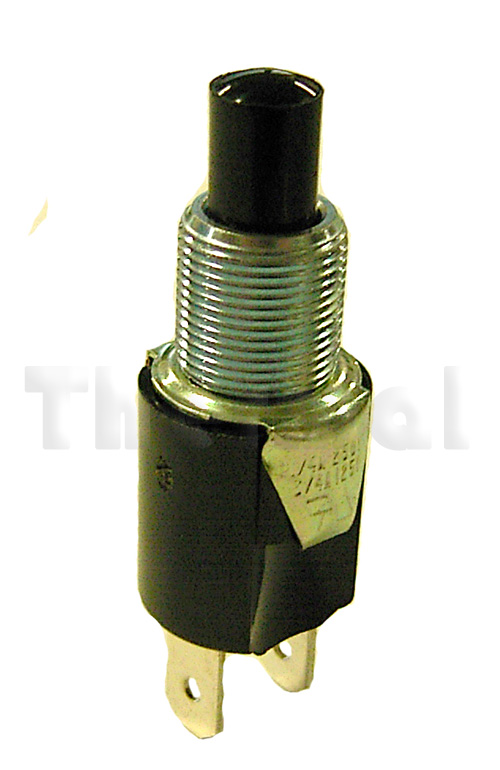

	8411K10	SPST On-<Off>	.25A/240VAC

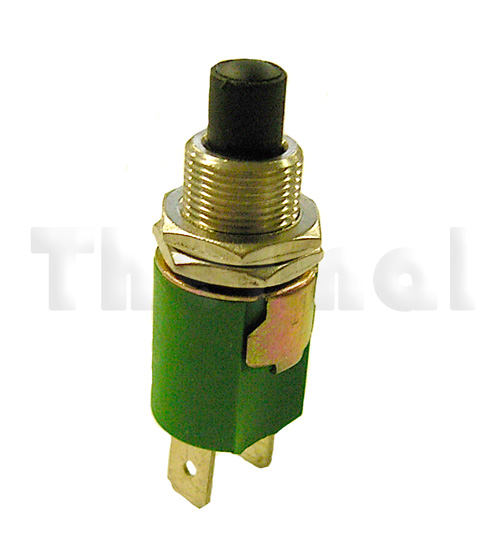

	8411K11	SPST <On>-Off	.25A/240VAC

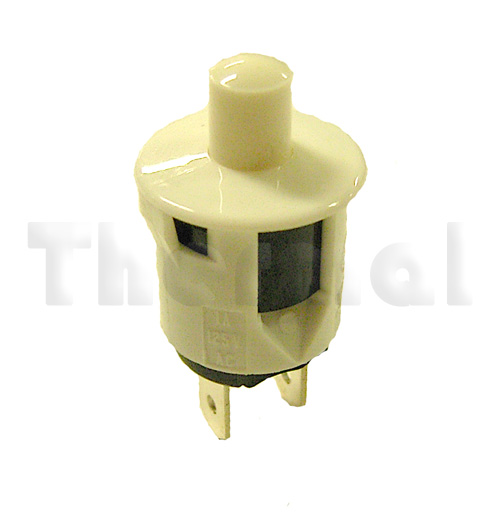

	8423K1	SPST On-<Off>	.25A/240VAC

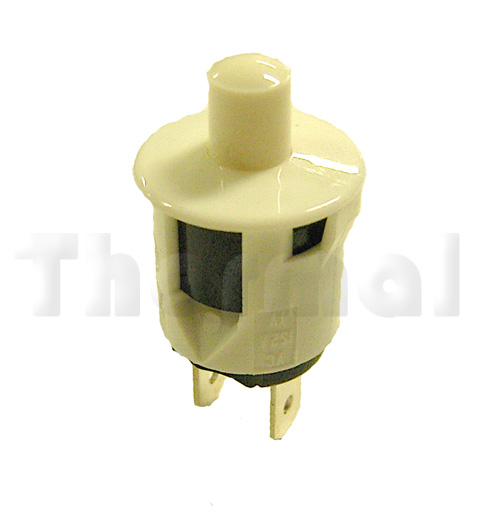

	8424K1	SPST <On>-Off	.25A/240VAC

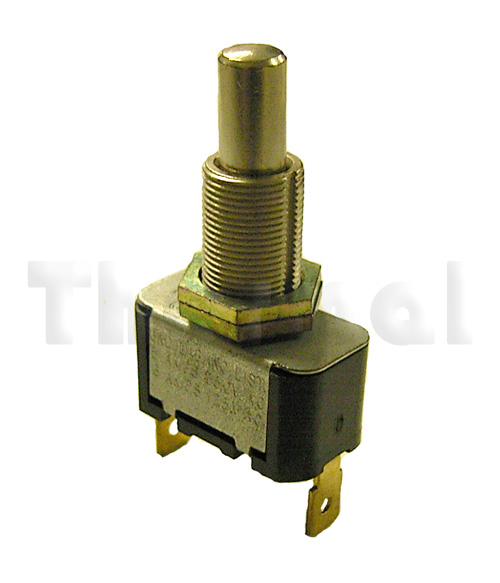

	8442K2	SPST <Mom>	.25A/250VAC/DC

Swann Push Button Switches

SP = Single Pole, DP = Double Pole.
ST = Single Throw.

Image	Part Number	Description	Amp / Volt

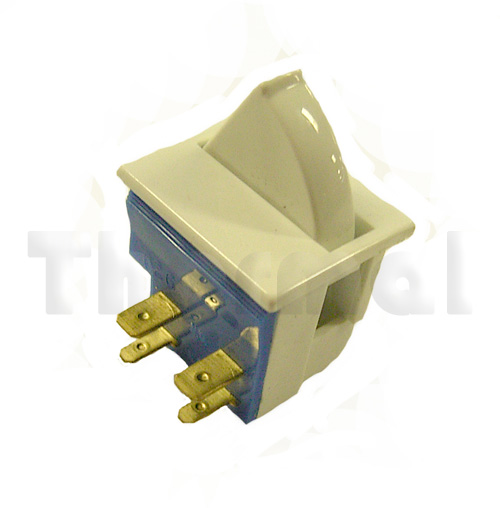

	3430-804-09	60 DPST White Fridge Door Switch	5A/125AC 2.5A/240VAC
	3430-806-09	60 SPDT White Fridge Door Switch	5A/125AC 2.5A/240VAC

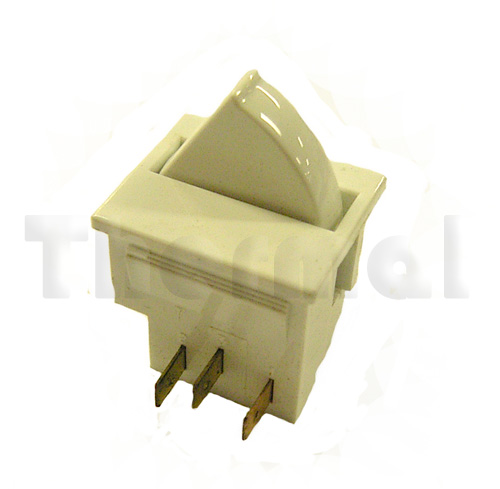

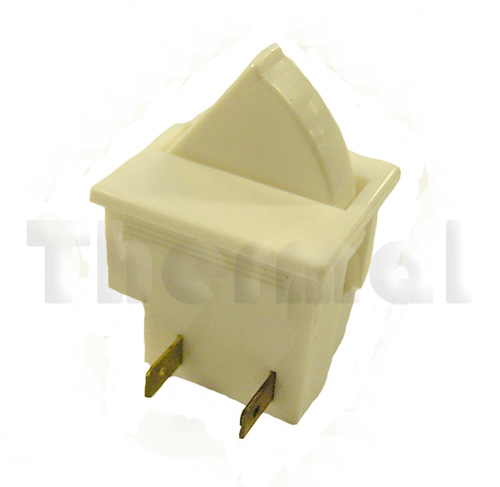

	3430-809-09	60 SPST White Fridge Door Switch	5A/125AC 2.5A/240VAC

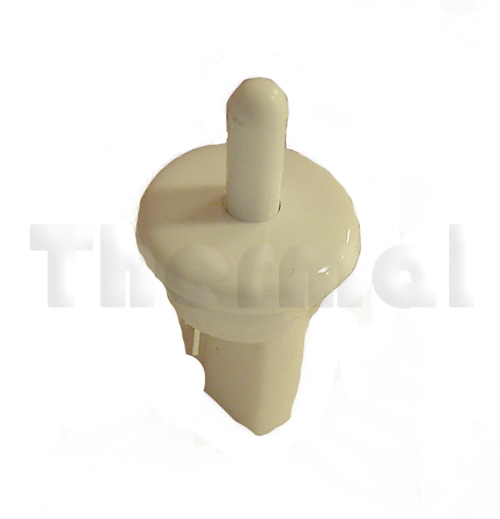

	3650-008-09	61 SPST N/C Fridge Door Switch	5A/125AC 2.5A/240VAC

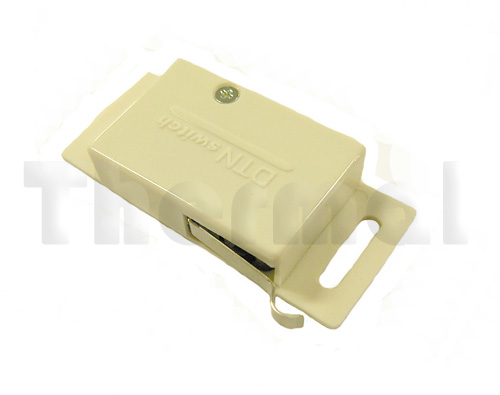

	6006	Pantry door switch	10A/250V

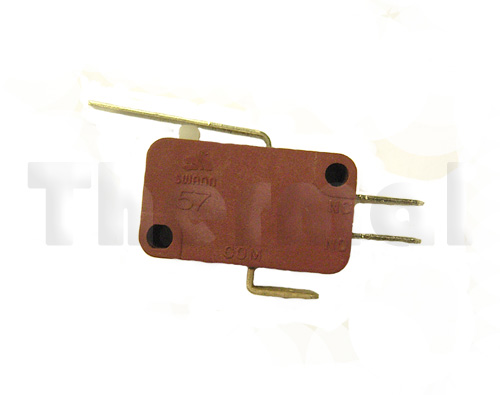

Swann Micro Switches

SP = Single Pole
ST = Single Throw, DT = Double Throw.

Image	Part Number	Description	Amp / Volt
	36-100-34-1050	SPST N/O Std Force 34 Lever	12A/125VAC 6A/250VAC
	36-100-39-1050	SPST N/O Std Force E Lever – T/s Vulcan	12A/125VAC 6A/250VAC
	36-120-32-1050	SPDT Std Force 32 Lever	12A/125VAC 6A/250VAC
	36-120-41-1050	SPDT Std Force 41 Lever	12A/125VAC 6A/250VAC
	36-121-12-1050	SPDT Light Force 12 Lever	12A/125VAC 6A/250VAC
	36-121-00-1050	SPDT Light Force NO Lever	12A/125VAC 6A/250VAC
	36-121-43-1050	SPDT Light Force 43 Lever	12A/125VAC 6A/250VAC

Tend Micro Switches

Image	Part Number	Description	Amp / Volt

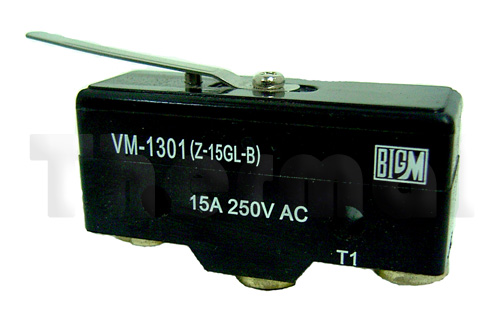

	TM1300	Micro Switch – Pin-Head plunger	15Amp / 240V

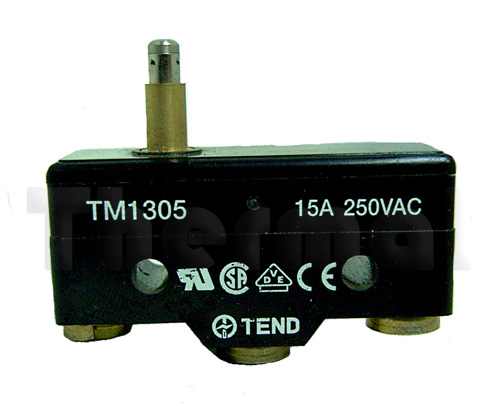

	TM1305	Micro Switch – Slim Spring plunger	15Amp / 240V

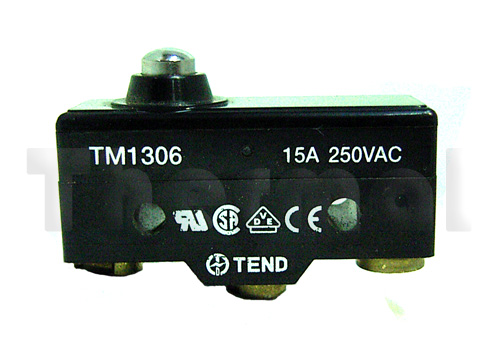

	TM1306	Micro Switch – Short button plunger	15Amp / 240V
	TM1307	Micro Switch – Long button plunger	15Amp / 240V

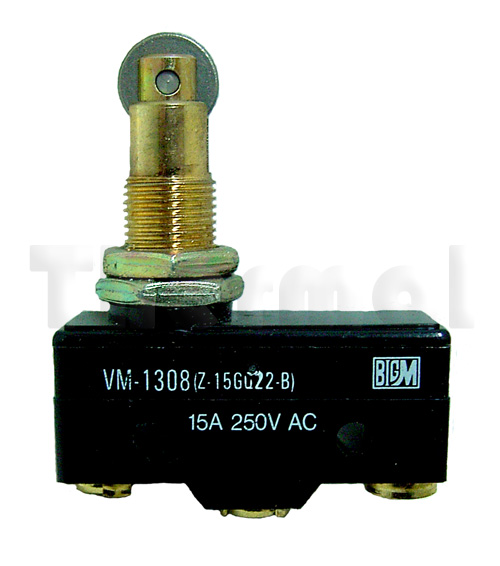

	TM1308	Micro Switch – Button plunger w/roller	15Amp / 240V

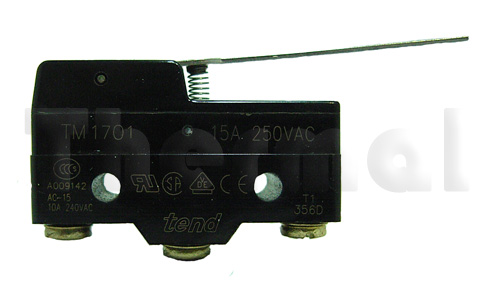

	TM1701	Micro Switch – 63mm lever	15Amp / 240V

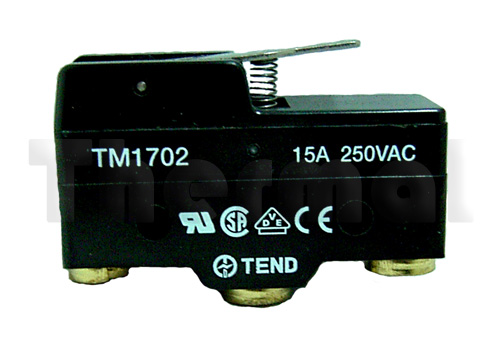

	TM1702	Micro Switch – 28mm lever	15Amp / 240V

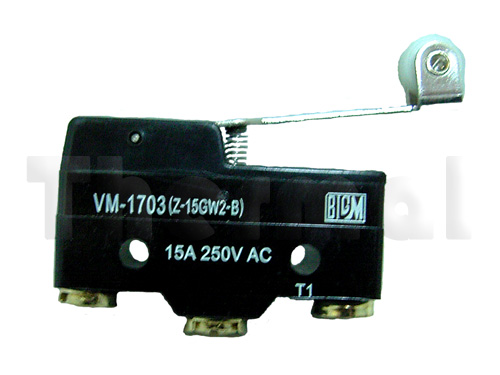

	TM1703	Micro Switch – 49mm lever w/roller	15Amp / 240V

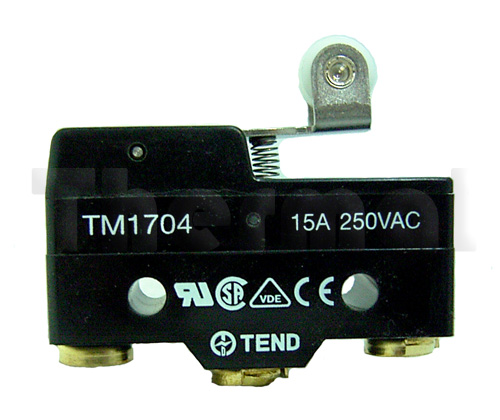

	TM1704	Micro Switch – 27mm lever w/roller	15Amp / 240V

Indicators

Image	Series	Diameter	Terminals	Voltage	Colours

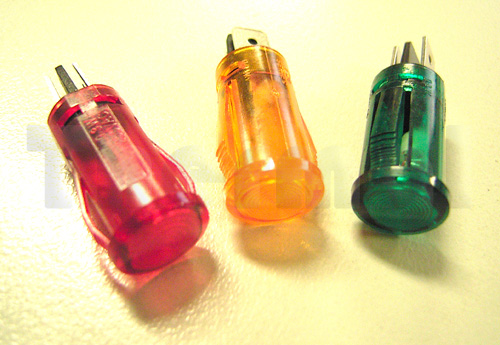

	9000	for 9.6mm hole	Quick Connects	240V	Red, Green, Amber
	1200	for 12mm hole	Quick Connects	240V	Red, Green, Amber

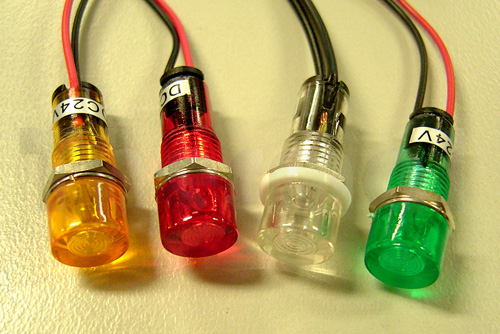

	PL10	for 10mm hole	150mm Leads/Quick Connects	12VDC 24VDC 110VAC 240VAC 415VAC	Red, Green, Amber, Clear

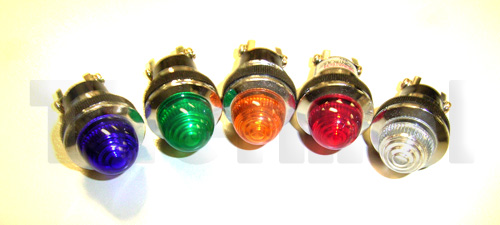

	PL25	for 25mm hole	Screw Tabs	240VAC 415VAC	Red, Green, Amber, Blue, Clear

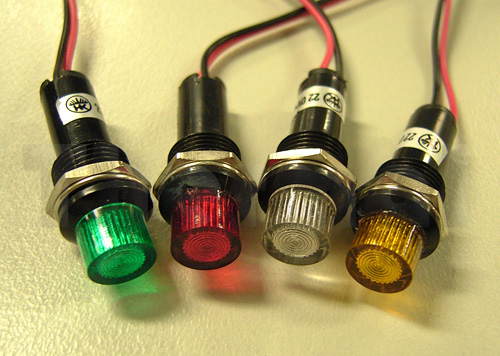

	HK402	for 11mm hole	150mm leads	240V	Red, Green, Amber, Clear

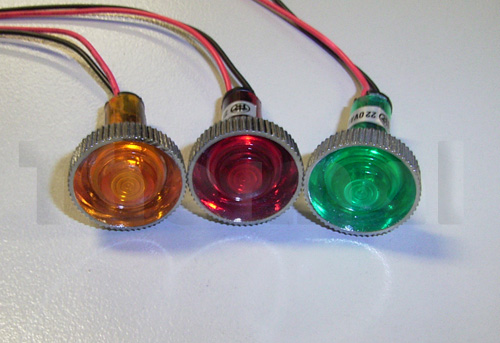

	HK405	for 11mm hole	150mm leads	240V	Red, Green, Amber, Clear
	HK501	for 14.5mm hole	Solder Tabs	240V	Red, Green, Amber

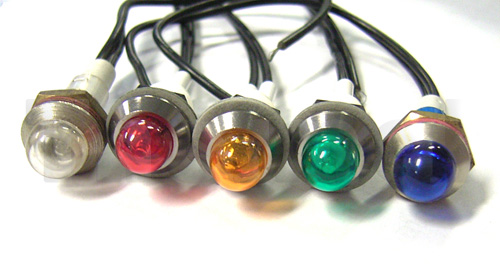

	SL81W	for 12mm hole	200mm Leads	240V	Red, Green, Amber, Blue, Clear

Trigger Switches

DP = Double Pole; ST = Single Throw

Image	Part Number	Description	Amp / Volt

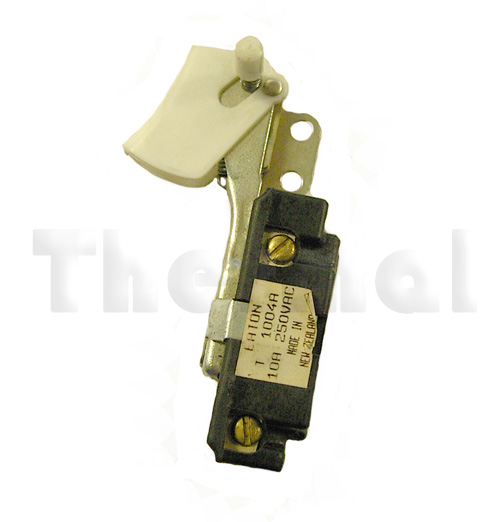

	8632K21	DPDT <On>-Off with Lock Pin	10A/240VAC

Coupatan Mechanical Runback Switches

Image	Part Number	Description	Knob	Amp/Volt

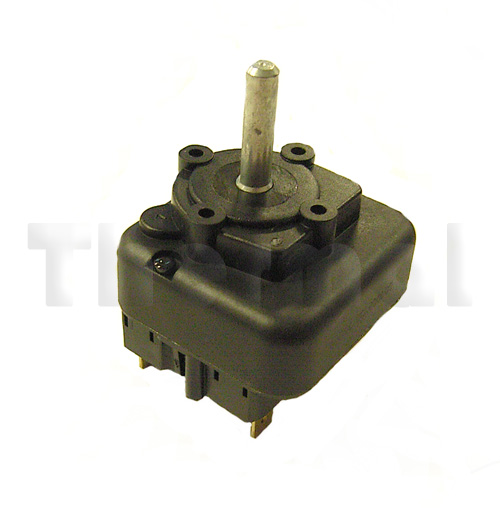

	C10-05	5 Min runback timer	EF524.153A	16Amp / 240V
	C10-15	15 Min runback timer	EF524.152A	16Amp / 240V
	C10-30	30 Min runback timer	EF524.155A	16Amp / 240V
	C10-60	60 Min runback timer	EF524.154A	16Amp / 240V
	C10-120	120 Min runback timer	N/A	16Amp / 240V

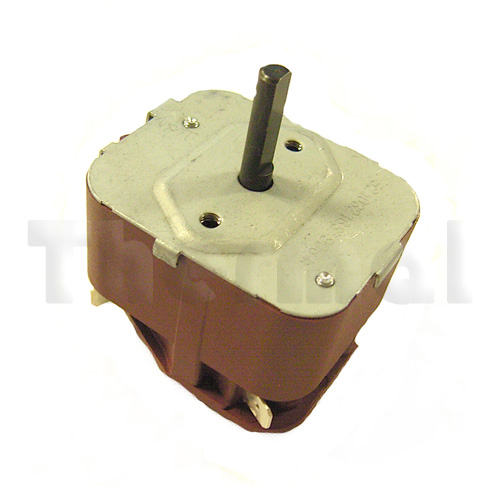

	C53-180	180 Min runback timer	N/A	16Amp / 240V

Other Spares

Image	Part No.	Description
	TOW	Rubber Boot t/s toggle switch
	TP-1	ON/OFF METAL LEGEND TO SUIT TOGGLE
	TP-2	ON/ON METAL LEGEND TO SUIT TOGGLE
	TP-3	ON/OFF/ON METAL LEGEND TO SUIT TOGGLE
	TAP-Y	Cover Micro Switch Angled Entry
	TAP-Z	Cover Micro Switch Right-Angled Entry
