| Part Number | Description |
|---|---|
| TMT10-60 | Microtemp 10A 60°C |
| TMT10-66 | Microtemp 10A 66°C |
| TMT10-77 | Microtemp 10A 77°C |
| TMT10-84 | Microtemp 10A 84°C |
| TMT10-93 | Microtemp 10A 93°C |
| TMT10-98 | Microtemp 10A 98°C |
| TMT10-104 | Microtemp 10A 104°C |
| TMT10-110 | Microtemp 10A 110°C |
| TMT10-117 | Microtemp 10A 117°C |
| TMT10-121 | Microtemp 10A 121°C |
| TMT10-128 | Microtemp 10A 128°C |
| TMT10-144 | Microtemp 10A 144°C |
| TMT10-152 | Microtemp 10A 152°C |
| TMT10-167 | Microtemp 10A 167°C |
| TMT10-172 | Microtemp 10A 172°C |
| TMT10-184 | Microtemp 10A 184°C |
| TMT10-192 | Microtemp 10A 192°C |
| TMT10-216 | Microtemp 10A 216°C |
| TMT10-228 | Microtemp 10A 228°C |
| TMT10-240 | Microtemp 10A 240°C |
Temperature Control & Display
Rainbow Thermostats
|
|
Part Number
|
Temp Range (°C)
|
Diff (°C) |
Capillary Length(mm)
|
Bulb Size (mm)
|
Stuffing Gland
|
Amps
|
Volts
|
Additional Info
|
|---|---|---|---|---|---|---|---|---|---|
 |
RST-120ST
|
0-120
|
3
|
1500
|
5 x 101
|
Yes
|
20
|
250
|
|
 |
RST-120S
|
0-120
|
3
|
1000
|
5 x 101
|
Yes
|
20
|
250
|
Changeover
|
 |

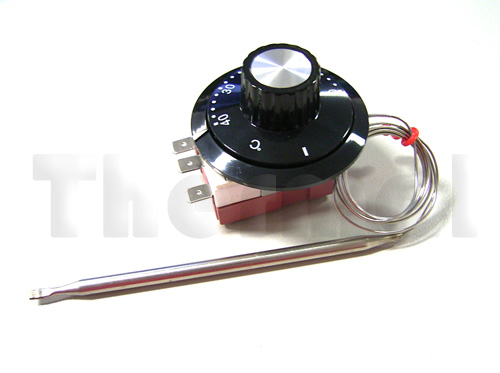

TS-040S
|
0-40
|
2
|
1500
|
6 x 125
|
No
|
20
|
250
|
Changeover
|
 |

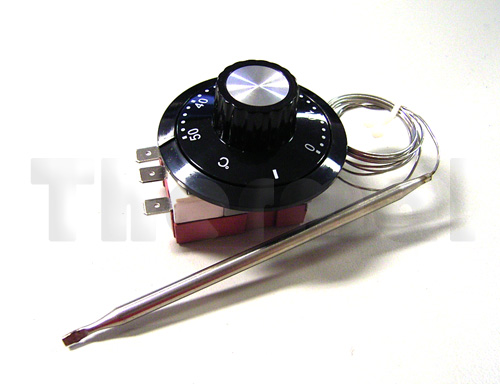

TS-050S
|
0-50
|
2
|
1500
|
6 x 125
|
No
|
20
|
250
|
Changeover
|
 |
TS-120ST
|
0-120
|
3
|
1500
|
5 x 101
|
Yes
|
20
|
250
|
|
 |

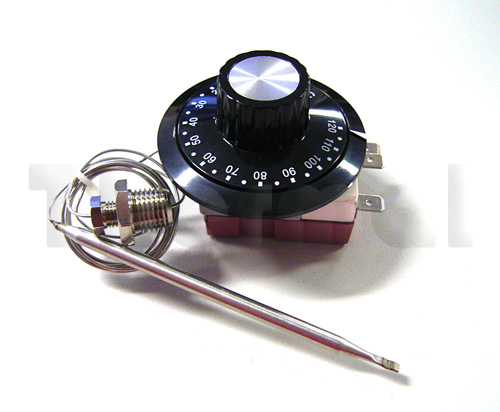

TS-120S
|
0-120
|
3
|
1500
|
5 x 101
|
No
|
20
|
250
|
Changeover
|
 |

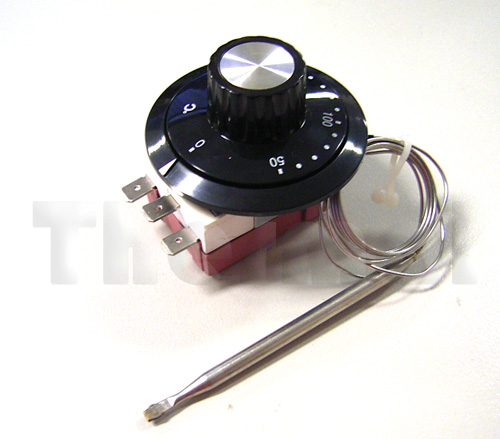

TS-200S
|
0-200
|
6
|
1500
|
5 x 84
|
Yes
|
20
|
250
|
Changeover
|
 |

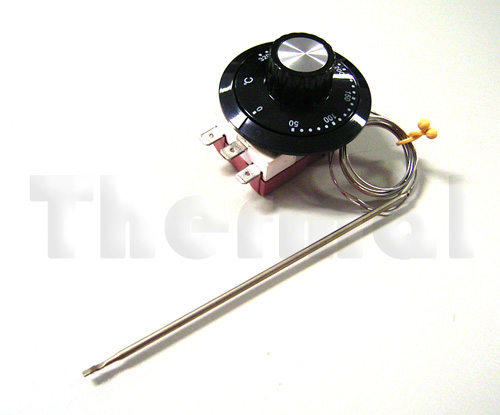

TS-320S
|
50-320
|
7
|
1500
|
3 x 143
|
No
|
20
|
250
|
Changeover
|
|
|
TS-200ST
|
0-200
|
6
|
1500
|
5 x 84
|
Yes
|
20
|
250
|
Changeover
|
|
TS-320ST
|
0-320
|
7
|
1500
|
3 x 143
|
No
|
20
|
250
|
||
|
TS-320S
|
50-320
|
7
|
1500
|
3 x 143
|
No
|
20
|
250
|
||
|

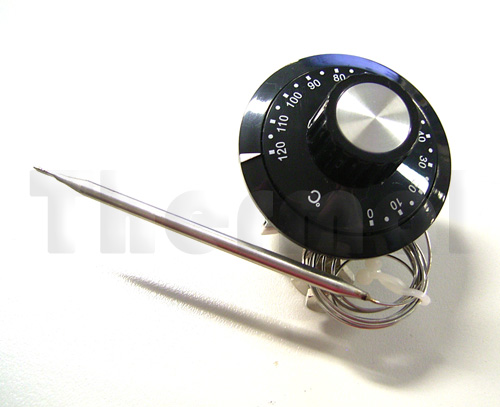

RNTS-120S
|
0-120
|
4
|
1000
|
8 x 166
|
Yes
|
30
|
250
|
||
|
RNTS-200S
|
0-200
|
5
|
1000
|
5.8 x 153
|
Yes
|
30
|
250
|
||
|
RNTS-320S
|
0-320
|
10
|
1000
|
5.8 x 152
|
No
|
30
|
250
|
||
|
ITS-050L
|
0-50
|
4
|
N/A
|
20
|
250
|
Changeover |
Robertshaw Thermostats
With auxiliary switching facilities – operating top and bottom elements independently
|
|
Part Number
|
Cap Length
|
Bulb size
|
Temp Range
|
Amps
|
|---|---|---|---|---|---|
 |

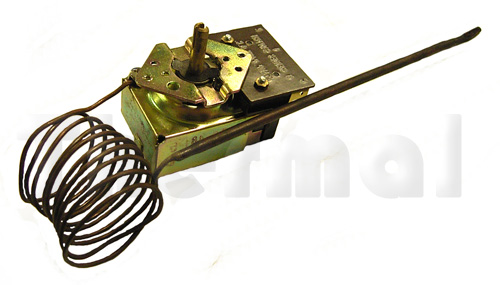

EA3B-481-5
|
1.32m
|
180 x 4.8mm
|
70-290°C
|
20A
|
 |

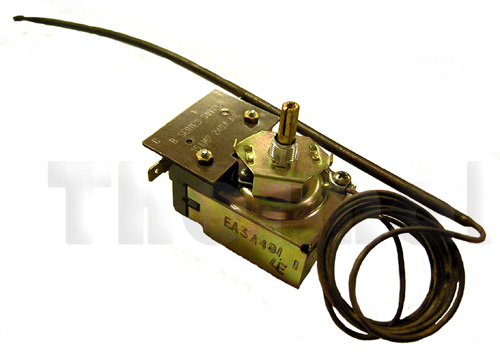

EA3A-491
|
1.44m
|
300 x 4.8mm
|
70-290°C
|
20A
|
 |

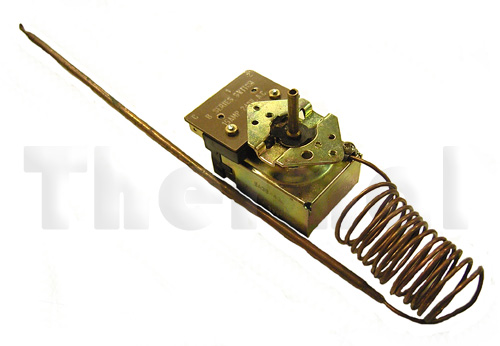

EA3B-443-6
|
1.44m
|
180 x 4.8mm
|
70-290°C
|
20A
|
General Thermostats
|
|
Part Number
|
Cap Length
|
Bulb size
|
Temp Range
|
Amps
|
Typical Use
|
|---|---|---|---|---|---|---|
 |

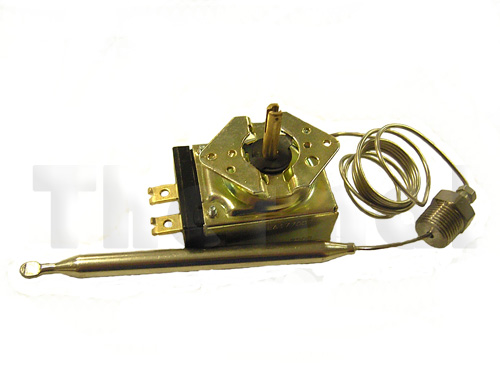

RX10-36
|
1130mm
|
130 x 9mm
|
95 – 205°C
|
20A
|
M/Volt Only
|
 |

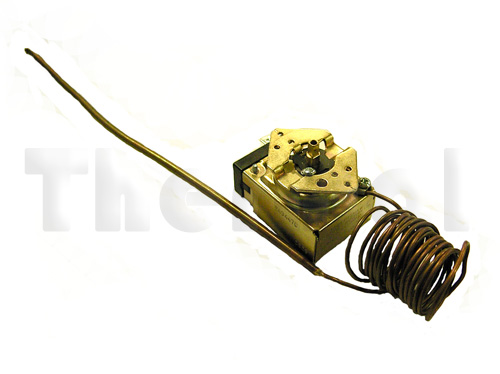

TEA3447
|
1520mm
|
288 x 5mm
|
70 – 290°C
|
20A
|
Domestic
|
 |

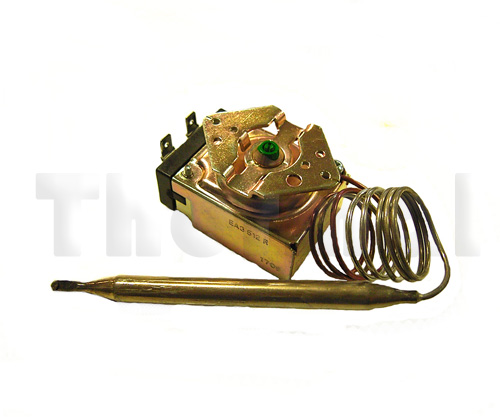

EA3-511
|
130 x 9mm
|
20A
|
Fixed Temp Water Heating T/Stat
|
||
 |

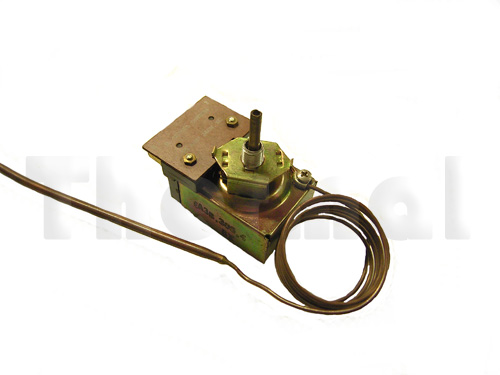

EA3B-305-4
|
1160mm
|
300 x 5mm
|
70 – 290°C
|
20A
|
NLA When Nil
|
 |

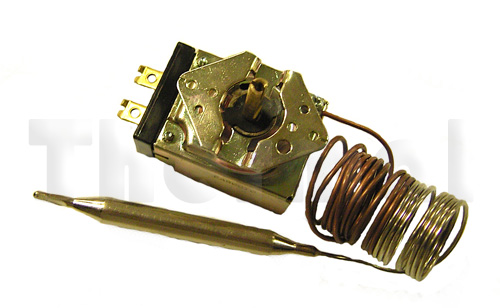

TEA5607
|
1830mm
|
115 x 10mm
|
15 – 120°C
|
20A
|
Drink Warmer, Cafe Bar, Baine Marie, Hosp. Equip
|
 |

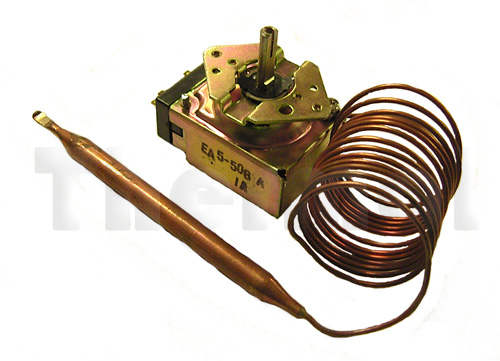

EA5-506-1
|
2050mm
|
135 x 9mm
|
25 – 105°C
|
20A
|
|
 |

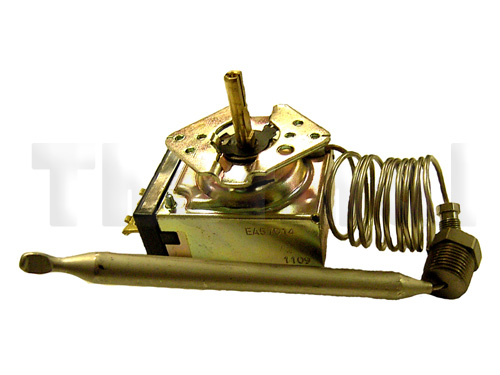

TEA5701
|
1220mm
|
145 x 10mm
|
95 – 205°C
|
25A
|
Fryers
|
 |

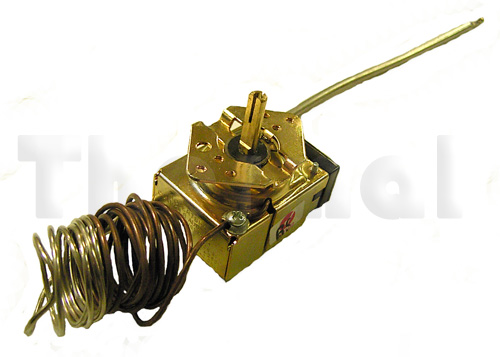

TEA5497
|
1830mm
|
288 x 5mm
|
70 – 290°C
|
25A
|
Bake Oven
|
 |

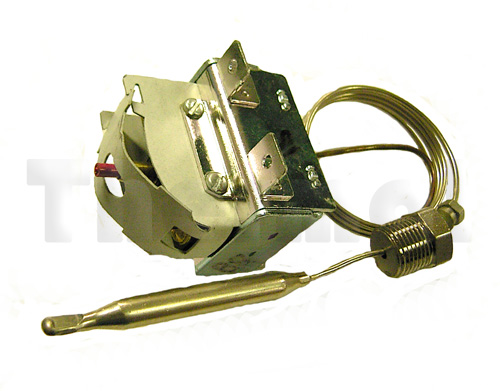

LCH-0025
|
870mm
|
75mm x 7.5mm
|
Cut out 232°C
|
20A
|
Manual reset with gland
|
 |

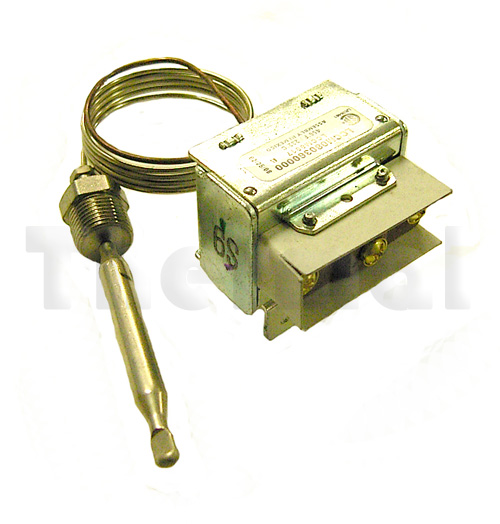

LCCM-0017
|
870mm
|
75mm x 7.5mm
|
Cut out 232°C
|
20A
|
Auto reset with gland
|
EGO Energy Regulators
|
|
Part Number
|
Features
|
Mount
|
Type
|
Amps/ Volts
|
Knob to suit
|
|---|---|---|---|---|---|---|
 |

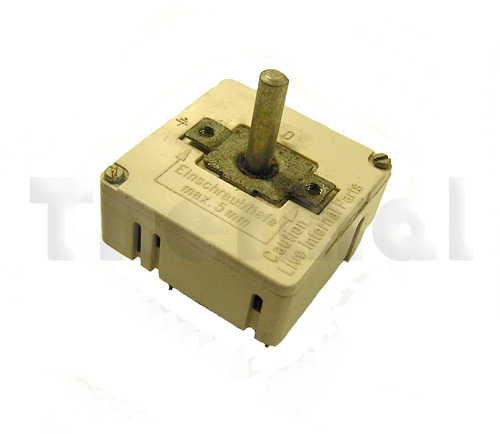

EF50.37051.000
|
Output 4-70% and Full on
|
2 x Screw
|
Double Pole, Seperate Pilot
|
7/380
|
EF524.010
|
 |

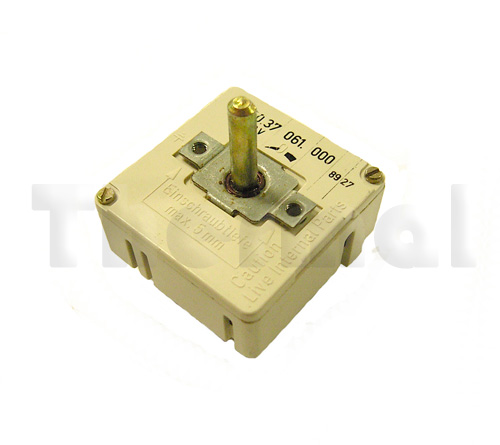

EF50.37061.000
|
Output 4-70% and Full on
|
2 x Screw
|
Double Pole, Seperate Pilot
|
12/110
|
EF524.010
|
 |

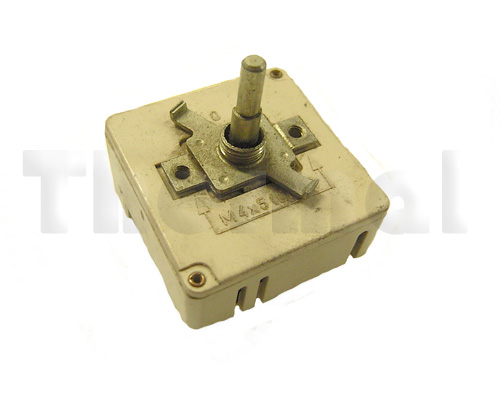

EF50.37076.050
|
3/16″ shaft
|
Centre Bush
|
Double Pole, Seperate Pilot
|
12/240
|
|
 |

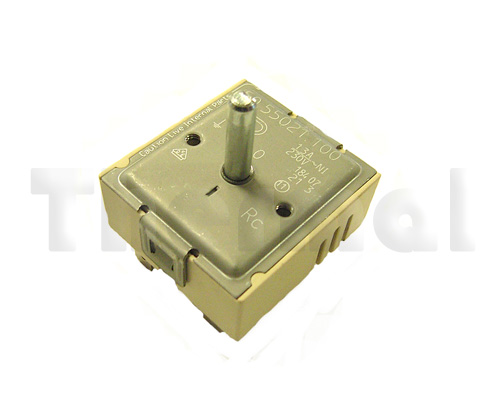

EF50.55021.100
|
2 x Screw
|
Divided dual Circuit
|
13/230
|
||
 |

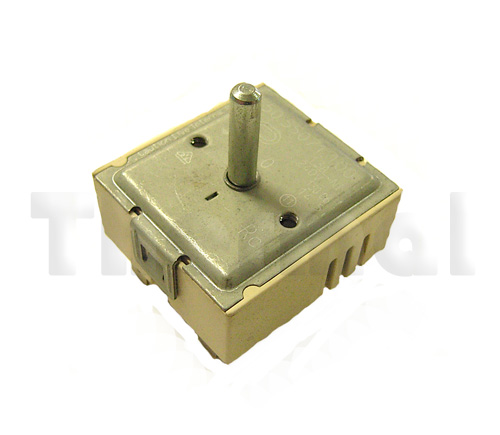

EF50.55071.100
|
2 x Screw
|
Divided dual Circuit
|
13/240
|
||
 |

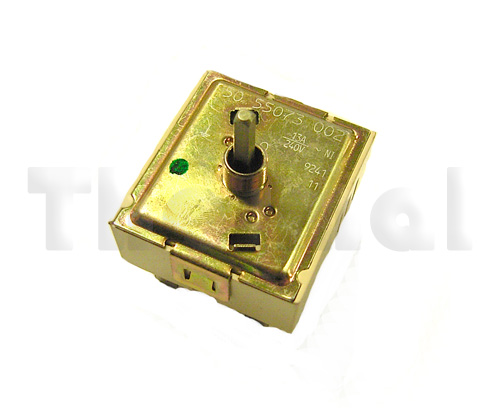

EF50.55073.002
|
Square shaft with adapters for ¼” and 6mm
|
Centre Bush
|
Divided dual Circuit
|
13/240
|
|
 |

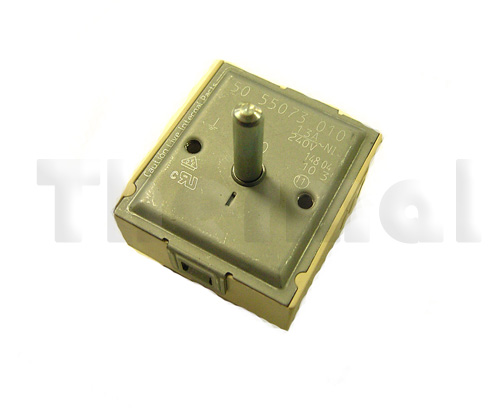

EF50.55073.010
|
2 x screw
|
Divided Dual Circuit
|
13/240
|
||
|
EF50.56074.008
|
Output 6-70% square shaft with adapters for 3/16,¼” and 6mm
|
Centre Bush
|
Single Pole Seperate Pilot
|
13/240
|
EF524.100A or EF524.177
|
|
 |

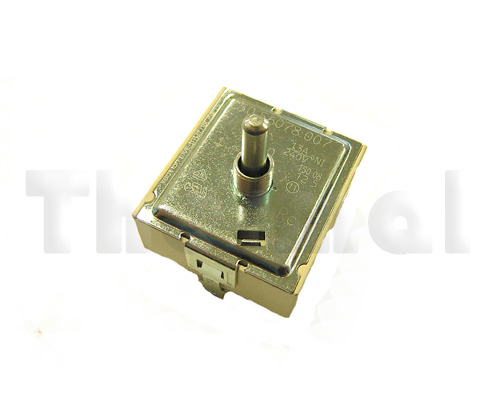

EF50.56078.007
|
Output 6-70% and Full On. 6mm “D” shaft
|
Centre Bush
|
Single Pole, Seperate Pilot
|
13/240
|
EF524.100A
|
 |

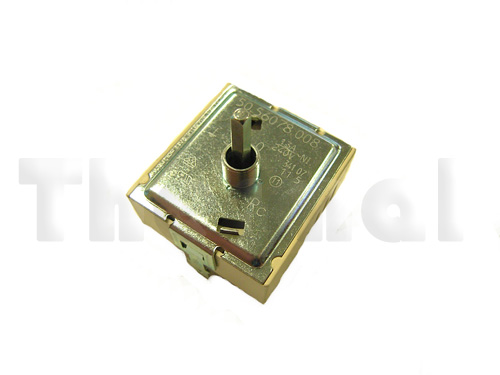

EF50.56078.008
|
Output 6-70% square shaft with adapters for 3/16,¼” and 6mm
|
Centre Bush
|
Single Pole, Seperate Pilot
|
13/240
|
EF524.100A or EF524.178
|
 |

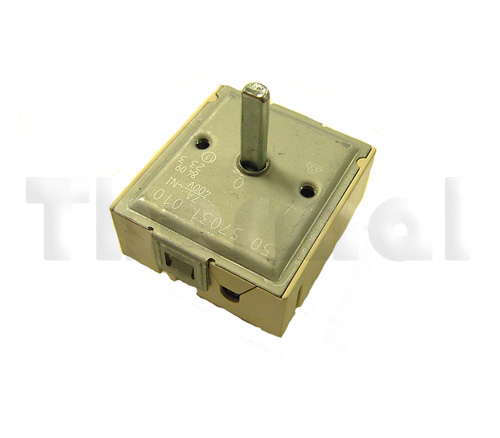

EF50.57031.010
|
Output 4-70% and full on
|
2 x screw
|
Double Pole, Seperate pilot
|
7/400
|
|
 |
EF50.57061.010
|
Output 6-70% and full on
|
2 x screw
|
Double Pole, Seperate Pilot
|
13/110
|
|
 |

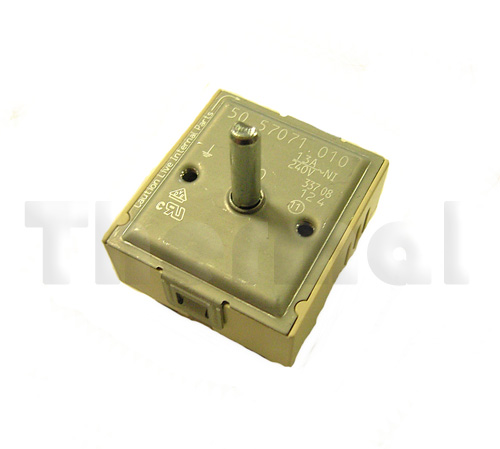

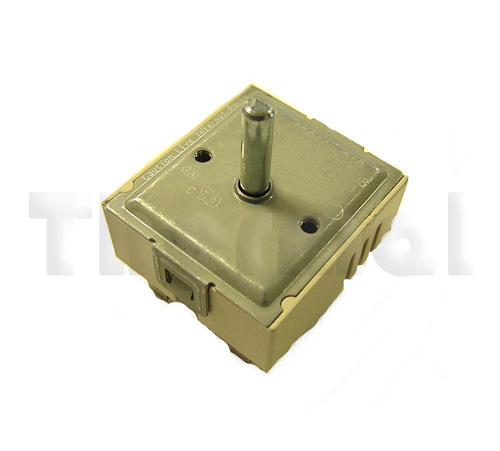

EF50.57071.010
|
Output 4 – 70% and full on
|
2 x Screw
|
Double Pole, Seperate Pilot
|
13/240
|
EF524.010 or EF524.100A
|
 |

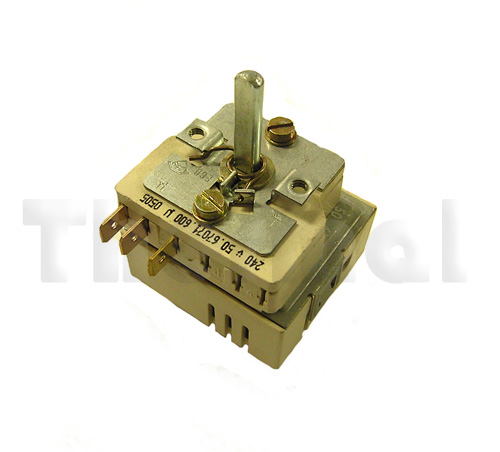

EF50.67061.600
|
Output 6-70% and full half & Full Element
|
2 x Screw
|
Divided Dual Circuit
|
13/240
|
FY-Series Digital Controllers
|
|
Part Number
|
Size (mm)
|
Description
|
|---|---|---|---|
 |
FY400-101
|
48 x 48
|
Digital Ctrl – Relay contact SPDT 3A/240VAC , 1 Alarm
|
|
FY400-201
|
Digital Ctrl – SSR Voltage Pulse, 20Vdc/20mA, 1 Alarm
|
||
|
FY400-301
|
Digital Ctrl – Current, 4~20mA into 500ohms, 1 Alarm
|
||
 |
FY700-101
|
72 x 72
|
Digital Ctrl – Relay contact SPDT 3A/240VAC , 1 Alarm
|
|
FY700-201
|
Digital Ctrl – SSR Voltage Pulse, 20Vdc/20mA, 1 Alarm
|
||
|
FY700-301
|
Digital Ctrl – Current, 4~20mA into 500ohms, 1 Alarm
|
||
 |
FY800-101
|
48 x 96
|
Digital Ctrl – Relay contact SPDT 3A/240VAC , 1 Alarm
|
|
FY800-201
|
Digital Ctrl – SSR Voltage Pulse, 20Vdc/20mA, 1 Alarm
|
||
|
FY800-301
|
Digital Ctrl – Current, 4~20mA into 500ohms, 1 Alarm
|
||
 |
FY900-101
|
96 x 96
|
Digital Ctrl – Relay contact SPDT 3A/240VAC , 1 Alarm
|
|
FY900-201
|
Digital Ctrl – SSR Voltage Pulse, 20Vdc/20mA, 1 Alarm
|
||
|
FY900-301
|
Digital Ctrl – Current, 4~20mA into 500ohms, 1 Alarm
|
Lae Controllers Ltr – 5 Series
|
|
Description
|
Information
|
|---|---|---|
 |
Temperature or Humidity Controller. Runs on mains power supply. Single output On/Off or PID Thermostat or Humidistat. Panel Cutout 71 x 29mm.
|
EVCO Controllers
|
|
Part Number
|
Description
|
Size
|
Information
|
|---|---|---|---|---|
 |
EV6421P7VHBS
|
Din Rail Mount Thermostat -50 – 150°C
|
Din Mount
|
|
 |
EVK-411M7VHBS
|
240V Digital Thermostat suits J/K/PTC/NTC inputs
|
71 x 29mm
|
|
 |
EVK-100P7/KIT
|
240V Digital Thermometer c/w PTC Probe
|
71 x 29mm
|
|
 |
EVS-432F
|
Heating/Cooling, Wing Controller, PTC/NTC Input
|
150 x 31mm
|
BI-Metal Thermostats
We Stock and supply a large variety of Bi-Metal Thermostats and cutoff Switches in a number of different shapes and sizes. Items can be uniquely ordered in lots or singles. As there are many different configurations, we require some information such as temperatures and sizing prior to manufacture. Please contact us for more information and ordering.
|
|
Part Number
|
Further Information
|
|---|---|---|
 |
T1-xxx
|
|
 |
T2-xxx
|
|
 |
T5-xxx
|
Rainbow Temperature Indicators
Thermal Products currently stocks a variety of Rainbow temperature controllers and indicators
|
|
Part Number
|
Temp Range(°C)
|
Dial Size (mm)
|
Hole Cut-out (mm)
|
Cap Length (mm)
|
Sensor Size (mm)
|
|---|---|---|---|---|---|---|
 |

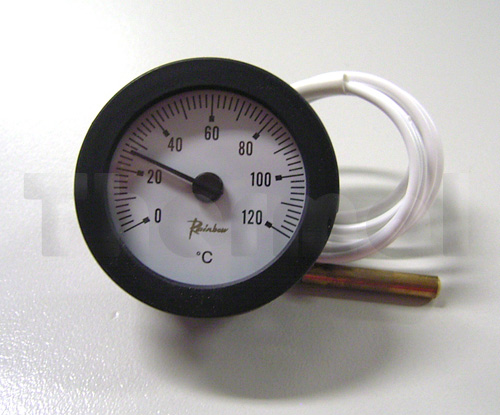

TMRB-120
|
0-120
|
57
|
52
|
1000
|
6×4
|
|
TMRB-040
|
0-40
|
57
|
52
|
1000
|
6×4
|
EGO Temperature Indicators
EGO have a good range of thermometers, as well as capillary thermometer controls called “Combistats”.
| Image |
Part Number
|
Feature
|
Temp. Range (°C)
|
Dial Size (mm)
|
Hole Cut-out (mm)
|
Cap Length (mm)
|
Sensor Size (mm)
|
|---|---|---|---|---|---|---|---|
 |

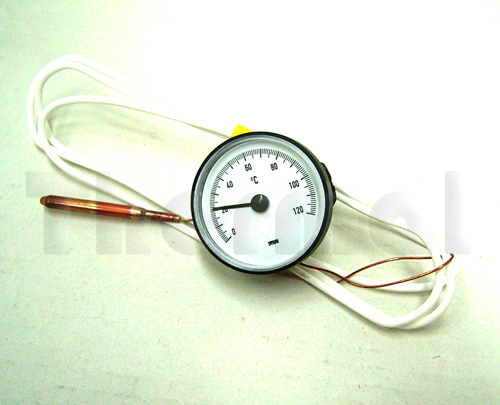

EF12228427
|
0 to +120
|
55
|
52.5
|
1500
|
6×65
|
|
|
EF6509587
|
50 to +200
|
70×14
|
Special
|
1000
|
6×45
|
||
 |
EF6012526
|
-40 to +60
|
62×29
|
58.4×25.3
|
none
|
none
|
|
|
EF6133611
|
-40 to +40
|
65
|
60.5
|
1500
|
8.5×45
|
||
 |

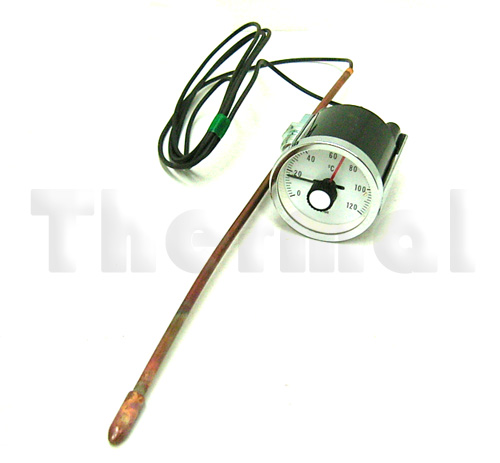

EF6139477
|
Combistat
|
0 to +120
|
64
|
60.5
|
2000
|
8.5×35
|
 |

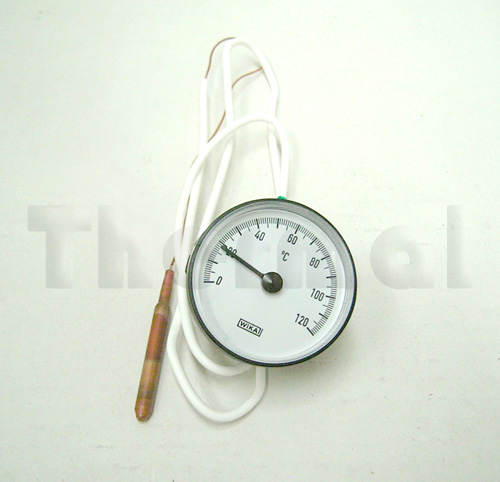

EF6150110
|
0 to +120
|
55
|
52.5
|
1000
|
6×65
|
|
 |

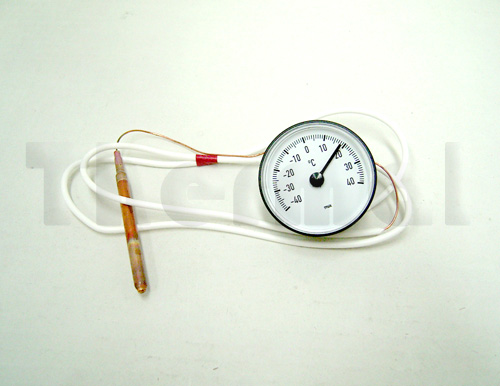

EF6150300
|
-40 to +40
|
55
|
52.5
|
1000
|
6×75
|
|
 |
EF6176990
|
+35 to +60
|
62×29
|
58.4×25.3
|
1500
|
6×41
|
|
|
EF6180950
|
Combistat
|
-40 to +40
|
64
|
60.5
|
3000
|
8.5×100
|
|
 |

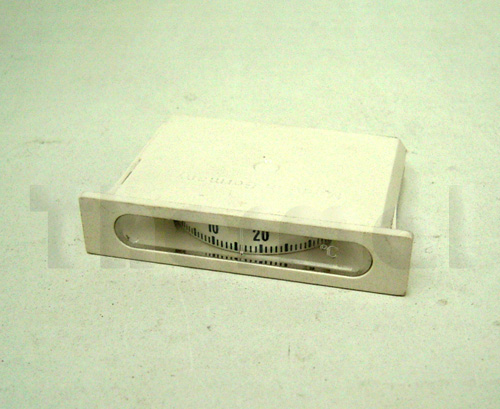

EF6018440
|
-40 to +60
|
68×14.4
|
none
|
none
|
||
|
EF6186213
|
-40 to +40
|
105
|
100.5
|
2000
|
8.5×55
|
||
 |

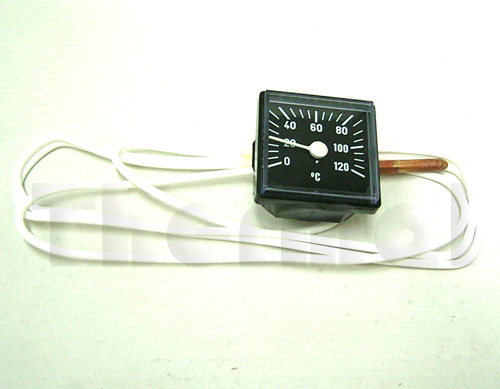

EF6199364
|
0 to +120
|
48×48
|
45.5×45.5
|
1500
|
6×50
|
|
 |

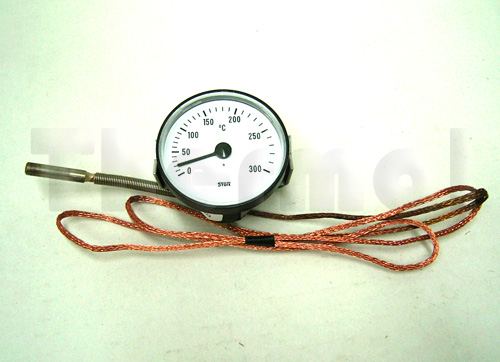

EF6213827
|
0 to +300
|
55
|
52.5
|
1000
|
6×30
|
|
|
EF6282251
|
-30 to +50
|
105
|
wall mount
|
none
|
none
|
||
|
EF6306167
|
0 to +60
|
64
|
60.5
|
5000
|
8×120
|
||
 |

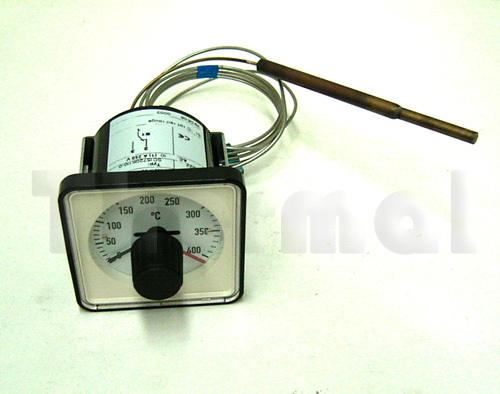

EF6315622
|
Combistat
|
0 to +400
|
72×72
|
60.5
|
1500
|
8×130
|
 |

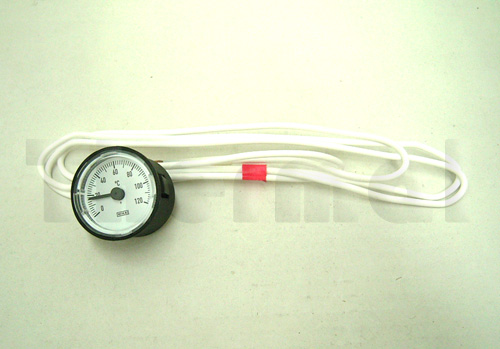

EF6326256
|
0 to +120
|
43
|
40.5
|
1500
|
6×53
|
|
|
EF6366682
|
0 to +120
|
51×17.5
|
58.4×25.3
|
1500
|
8.5×30
|
||
 |

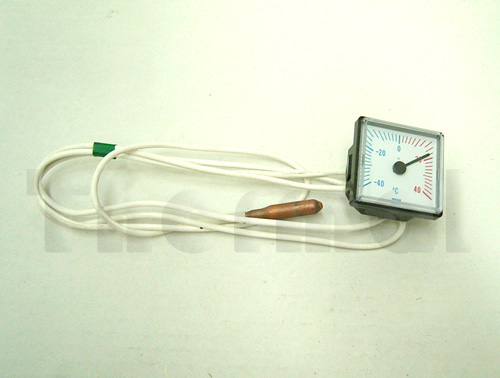

EF6376988
|
-40 to +40
|
48×48
|
45.5×45.5
|
1500
|
6×55
|
|
 |

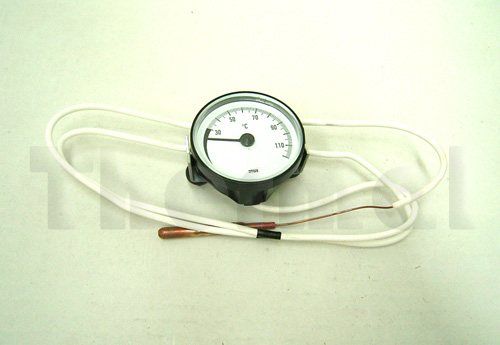

EF6383067
|
0 to +120
|
55
|
52.5
|
1000
|
6×80
|
|
 |
EF6383075
|
-40 to +40
|
55
|
52.5
|
1000
|
8.5×55
|
|
 |

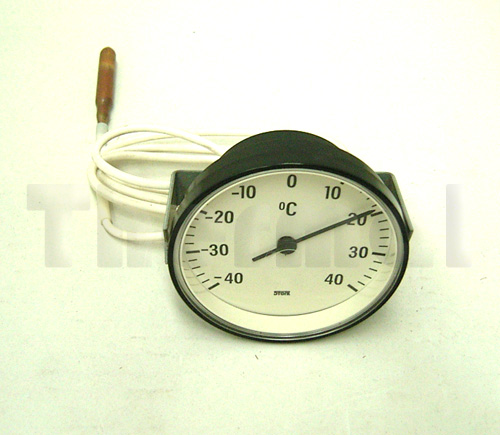

EF6400580
|
-40 to +40
|
85
|
80.5
|
1500
|
8.5×55
|
|
|
EF6414334
|
0 to +120
|
55
|
52.5
|
1000
|
6×55
|
||
 |

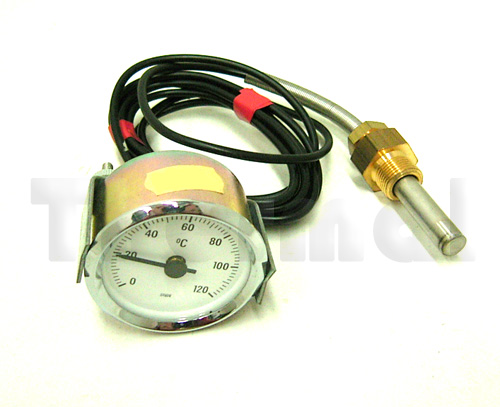

EF6417576
|
0 to +120
|
55
|
52.5
|
1500
|
10×70
|
|
|
EF6135475
|
-35 to +60
|
70×14
|
Special
|
2500
|
6×36
|
||
 |

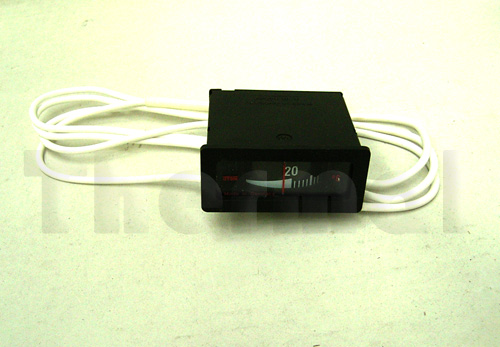

EF6524854
|
0 to +120
|
51×17.5
|
58.4×25.3
|
1500
|
8.5×30
|
